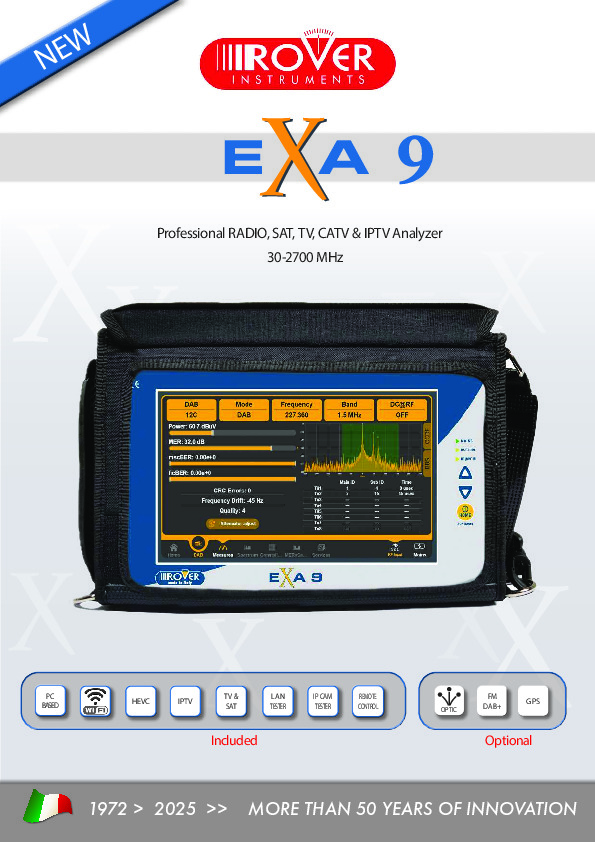

Professional RADIO, SAT, TV, CATV & IPTV Analyzer 30-2700 MHz
GENERAL SPECIFICATIONS
• 9” TFT TOUCH display: 16:9 high resolution and high brightness. Capacitive industrial Display.
• DC voltage at RF input: 5 - 12 - 18 - 24 V, DC DiSEqC, SCR & dCSS commands.
• PC Interface: USB-B.
• Front-Panel: Alpha numeric keypad + Multifunction Encoder.
• Power Save: TFT backlight timer, brightness adj.
• PC Management: WEB Browser (no special SW required).
• Power Supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & Battery Test function.
• Battery: Integrated lithium polymers from 2 to 4 hours of duration (depending on the function) and
BATTERY TEST function.
• Battery door: removable battery door for quick and easy replacement without the need for assistance
• Weight: only 2 Kg.
• Size: H 18,0 x W 28 x D 4,0 cm (meter only).
• Aluminium and Steel Housing.
• Elite bag with extra padding and storage ZIP pocket.
SPECIAL FUNCTIONS
• PC based fast navigation
• NEW Intuitive navigation system with direct access to functions.
• Exclusive patented ROVER AUTODISCOVERY system: automatically detects and selects analog
and digital COFDM/QAM TV signals in both measurement and spectrum mode.
• Automatically identifies all the signals with digital modulation SAT, TV and CATV.
• Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
• Barscan TV & CATV function from 10 to 100 channels on one screen.
• Buzzer & Noise Margin real time graph for digital signals microinterruptions.
• Reflectometric measurements APP.
• Optical Input (opt.).
• WI-FI analyzer (opt.).
• HEVC H265 decoder (opt.).
• SATELITE: DiSEqC, SCR & dCSS, SAT FINDER & SAT EXPERT Functions.
• Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT)
by PC or Local Keyboard.
• Loggers: TV, SAT & combined with stop & go function.
• SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
• LAN cable tester.
• IP camera tester.
