The PROFESSIONAL & ACCURATE TOUCH SCREEN ANALYZER

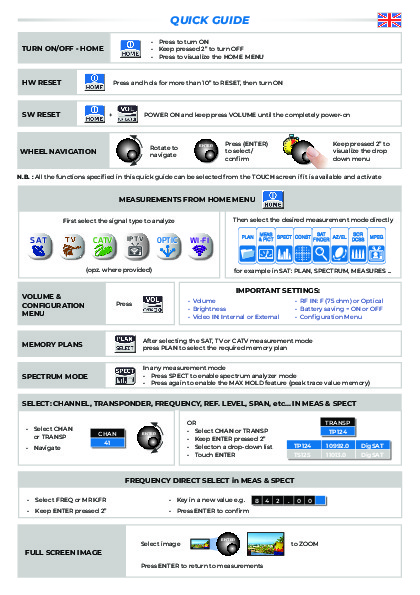

Main features:
- 9” TFT TOUCH display: 16:9 high resolution and high brightness
- Power Supply: Built in LiPo battery with up to 6 hours duration & Battery Test function
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR and dCSS commands
- PC Interface: USB-A
- Front-Panel: Alpha numeric keypad
- Power Save: TFT backlight timer, brightness adj.
- PC Management: SMART software
Special functions
ETR 101-290 T.S. Analyzer
Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode
HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV
Automatic Assistant: Signal Quality analysis, Channel Scan memorization
Barscan TV & CATV function from 10 to 100 channels on one screen
Buzzer & Noise Margin real time graph for digital signals microinterruptions
Reflectometric measurements APP
PRODRIVE TEST: REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails
Optical Input signals
SATELITE: DiSEqC, SCR & dCSS commands, motorized antenna, dual LNB, SAT FINDER and SAT EXPERT
Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
Loggers: TV, SAT & combined with stop & go function
SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
Specifications:measurements & spectrum analysis
Frequency Range: 4-1250 MHz; SAT: 950–2250 MHz (2610 with Sat extension opt.).
Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable
Power range Measurement: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
Digital Measurement: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
Analog Measurement & Picture: Analog level, V/A ratio
Measurement Resolution: 0.1 dB
Level Measurement Accuracy: 1 dB typ. (2 dB max.)
Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable
Constellation: for TV/CATV and SAT signals.
Spectrum: Real time, Max Hold and spectrum memorization with real time compare function
Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
Echoes, Pre-echoes, Micro-echoes: Representation in real Time
Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
TS: TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables
IPTV: measurements and picture decoding (opt.)
Optical measurements
FC-ST-SC interchangeable input connectors
Automatic loss calculation
Wavelengths (nm): 1310, 1490, 1550
Range: -25 to 10 dBm
Resolution: 0.1 dB
Accuracy: +/- 0.5 dB
Optical to RF conversion
Comm.ports and outputs
RF Input: 75 ohm (interchangeable “F”)
LAN: RJ45 10/100 base Ethernet
USB 2.0: Type B (PC Interface)
USB 2.0: Type A (USB drive)
Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
Audio: AAC supplied, DOLBY
Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector
Audio/Video: Composite A/V input, HDMI output
Common Interface: PCMCIA slot for single/multi-service CAM modules
Weight: only 2,6 Kg with batteries
Size: H 29,0 x W 17,0 x D 5,5 cm
Housing: Aluminium and Steel and padded bag
