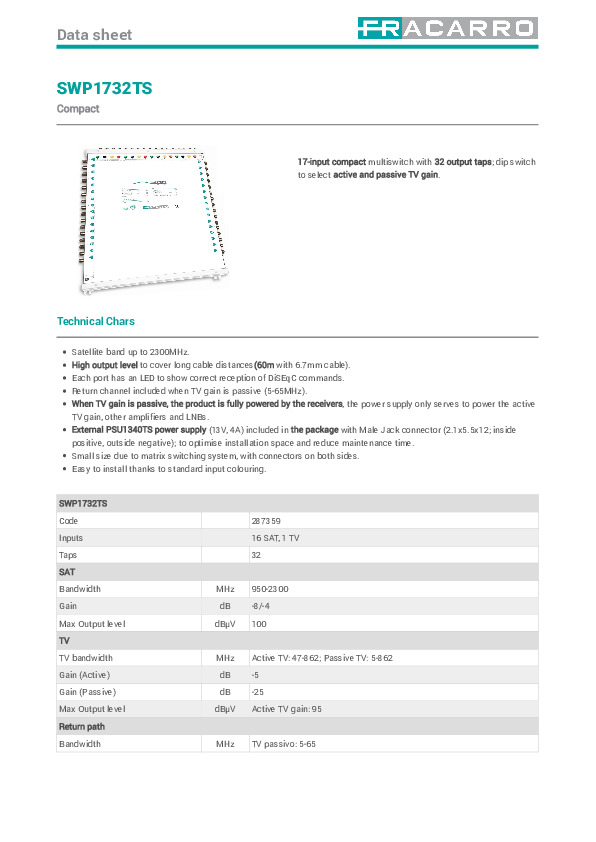

17-input compact multiswitch with 32 output taps; dip switch to select active and passive TV gain.
Main Features:
- Satellite band up to 2300MHz.
- High output level to cover long cable distances(60m with 6.7mm cable).
- Each port has an LED to show correct reception of DiSEqC commands.
- Return channel included when TV gain is passive (5-65MHz).
- When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active
- TV gain, other amplifiers and LNBs.
- External PSU1340TS power supply (13V, 4A) included in the package with Male Jack connector (2.1x5.5x12; inside
positive, outside negative); to optimise installation space and reduce maintenance time. - Small size due to matrix switching system, with connectors on both sides.
- Easy to install thanks to standard input colouring.
