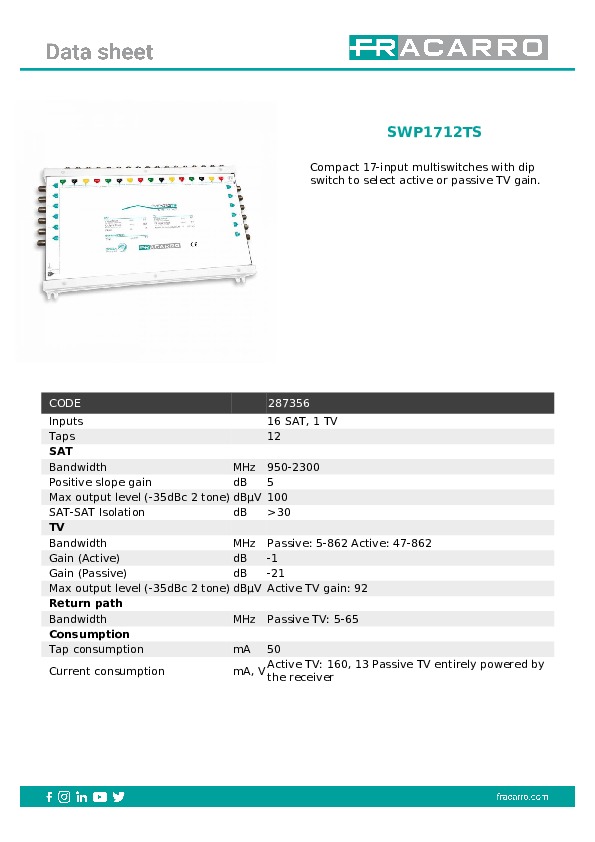

Compact 17-input multiswitches with dip switch to select active or passive TV gain.
Main features:
Inputs: 16 SAT, 1 TV
Taps: 12
SAT
Bandwidth MHz: 950-2300
Positive slope gain dB: 5
Max output level (-35dBc 2 tone) dBµV: 100
SAT-SAT Isolation dB: >30
TV
Bandwidth MHz: Passive: 5-862 Active: 47-862
Gain (Active) dB: -1
Gain (Passive) dB: -21
Max output level (-35dBc 2 tone) dBµV: Active TV gain: 92
Return path
Bandwidth MHz: Passive TV: 5-65
Consumption
Tap consumption mA: 50
Current consumption mA, V Active TV: 160, 13 Passive TV entirely powered by the receiver
Max LNB current consumption mA: Passive TV: 4000 Active TV: 3840
Dimensions mm: 190x310x40
Dimensions power supply mm: 110x52x34
Operating temperature °C: -0.181818
