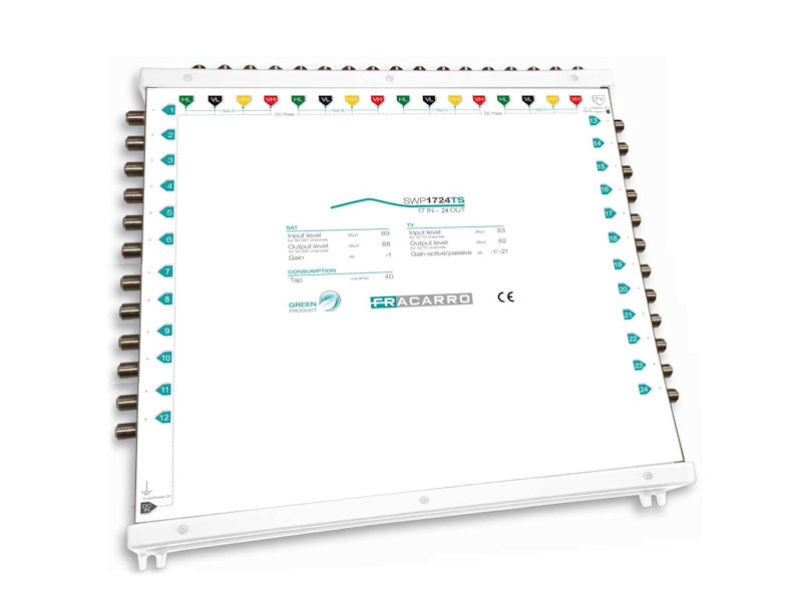

Compact 17-input multiswitches with dip switches to select active or passive TV gain.
Main features:
Entrances: 16 SAT, 1 TV
Derivatives: 24
SAT
Bandwidth MHz: 950-2300
Gain with positive slope dB: -7 / -3
Maximum output level (-35dBc 2 tones) dBµV: 100
SAT-SAT insulation dB : > 30
TV
Bandwidth MHz: Passive: 5-862 Active: 47-862
Active gain dB: -3
Passive earnings dB: -23
Maximum output level (-35dBc 2 tones) dBµV: Active TV gain: 95
Return channel
Bandwidth MHz: Passive TV: 5-65
Consumption
Derivative consumption mA: 50
Absorption mA, V: Active TV: 160, 13 passive TV entirely powered by the receiver
Maximum LNB absorption mA: Passive TV: 4000 Active TV: 3840
General features
Dimensions mm: 260x310x40
Power supply dimensions mm: 110x52x34
Operating temperature ° C: -10 ÷ + 55
