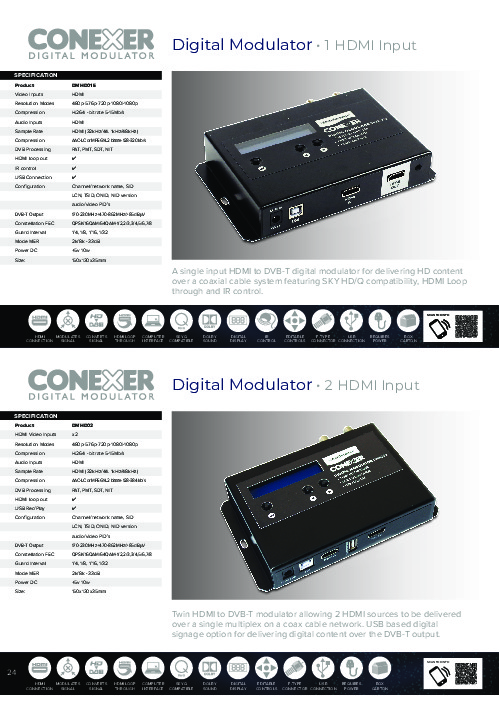

A single input HDMI to DVB-T digital modulator for delivering HD content over a coaxial cable system featuring SKY HD/Q compatibility, HDMI Loop
through and IR control.
Main features:
- Video Inputs: HDMI
- Resolution Modes: 480p-576p-720p-1080i-1080p
- Compression: H.264 - bitrate 5-15Mb/s
- Audio Inputs: HDMI
- Sample Rate: HDMI (32kHz/44. 1kHz/48kHz)
- Compression: AAC-LC or MPEG1-L2 bitrate 128-320 kb/s
- DVB Processing: PAT, PMT, SDT, NIT
- HDMI loop out
- IR control
- USB Connection
- Configuration: Channel/network name, SID, LCN, TSID, ONID, NID version audio/video PID’s
- DVB-T Output: 170-230MHz+470-862MHz/>85dBµV
- Constellation FEC: QPSK/16QAM/64QAM-1/2,2/3,3/4,5/6,7/8
- Guard Interval: 1/4, 1/8, 1/16, 1/32
- Mode MER: 2k/8k - 33dB
- Power DC: +5v 10w
- Size: 150x130x35mm
