TRIAX MOD103T Single HD DVB-T Modulator

converts HDMI input signal
c/w Loop Through and IR Control
*PROMOTIONAL PRICE* *SAVE 10%*
*Offer runs 6th June to 31st July*

SKU: 300128

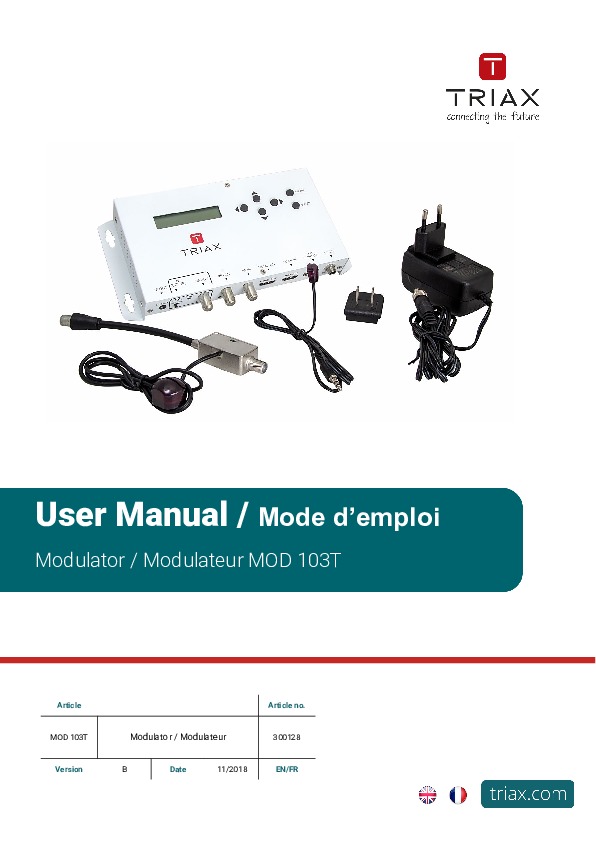

  Product Documents

TRIAX MOD103T Single HD DVB-T Modulator

converts HDMI input signal
c/w Loop Through and IR Control
*PROMOTIONAL PRICE* *SAVE 10%*
*Offer runs 6th June to 31st July*

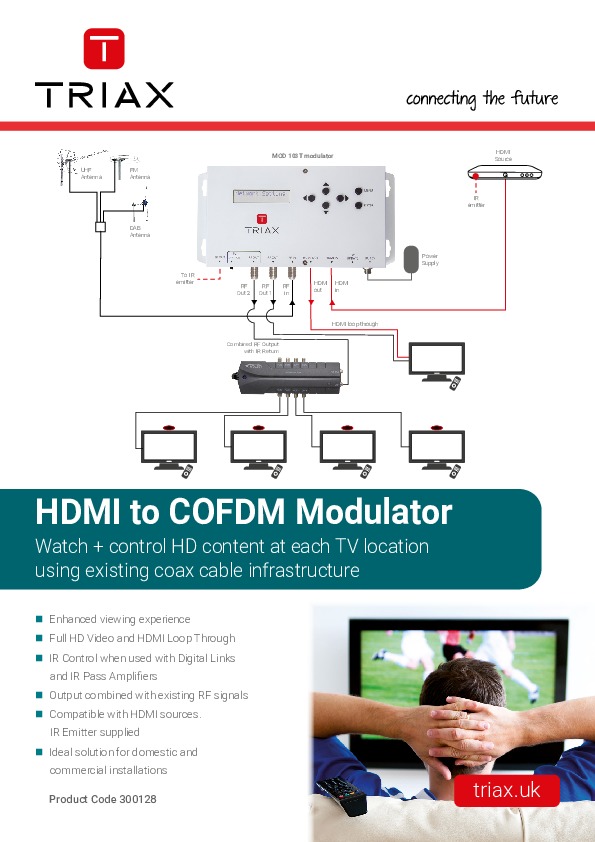

Watch + control HD content at each TV location using existing coax cable infrastructure

Main Features:

  • New compact design
  • All inputs and outputs on one side for ease of installation
  • Full HD Video and HDMI Loop through
  • IR Control when used with Digital Links and IR Pass Amplifiers
  • Enhanced viewing experience

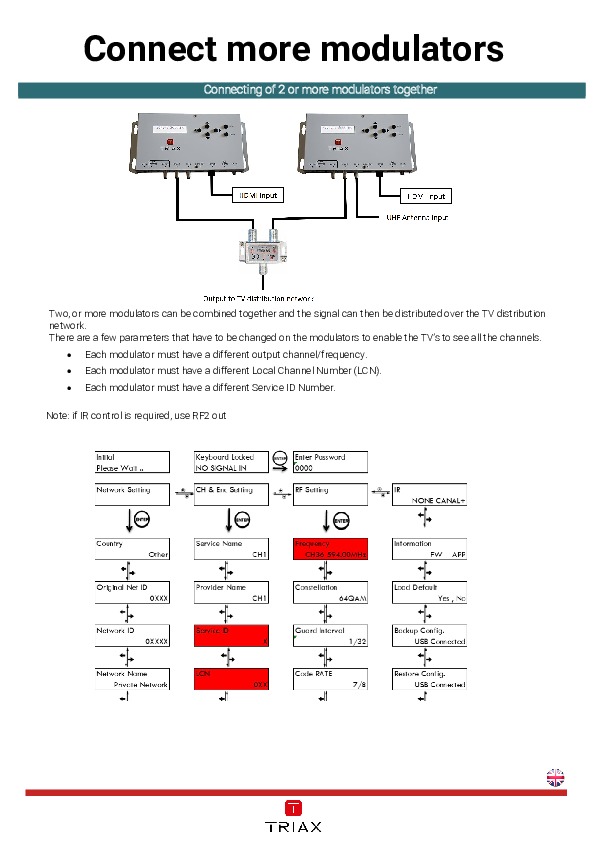

  • Combine multiple modulators together for more HD channels on your network – watch different sources on different TVs
  • Output combined with existing RF signals
  • RF Output level control
  • Fully agile output
  • IR Emitter required at HDMI source (supplied)
  • Compatible with HDMI sources*
  • Ideal solution for domestic and commercial installations

CHARACTERISTICS
Video Input: HDMI
Audio Input: Stereo, HDMI
Video resolution: Up to 1080p@30Hz Pixel
Video Compression: H.264 4.0
Audio Compression: MPEG-2, AAC
Number of carriers: 2K / 8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Constellation: QPSK/16QAM/64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Output level: < 95 dBµV
MER: <30 dB
Frequency range: 177...858 MHz
Bandwidth: 6/7/8 MHz

RETURN LOSS
LCN: 1...999

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
DC Operating voltage: 12 VDC
External PSU: Included
Service Settings: Serv. Name: Edit service name Serv. ID: 1-65535
Stream Settings: Orig Netw ID: 1-65535 Netw ID: 1-65535 TS ID: 1-65535 Netw Name: Edit Network Name
Parameter Settings: Const: QPSK/16QAM/64QAM Code Rate: 5/6, 7/8 Guard Interval: 1/4, 1/8, 1/16, 1/32 Trans Mode: 2K, 8K Bandwidth: 6,7,8 MHz

CONNECTORS
Input connector: HDMI, F-terrestrial loop through
Connector IN: HDMI female (Type A)
Connector OUT: F-female
MECHANICAL

Display: LCD panel and buttons
Product Height: 106 mm
Product Depth: 32 mm
Product Width: 220 mm
Colour: White
Packaging Height: 0,057 m
Packaging Width: 0,248 m
Packaging Depth: 0,190 m
Packaging Volume: 0,003 m3
