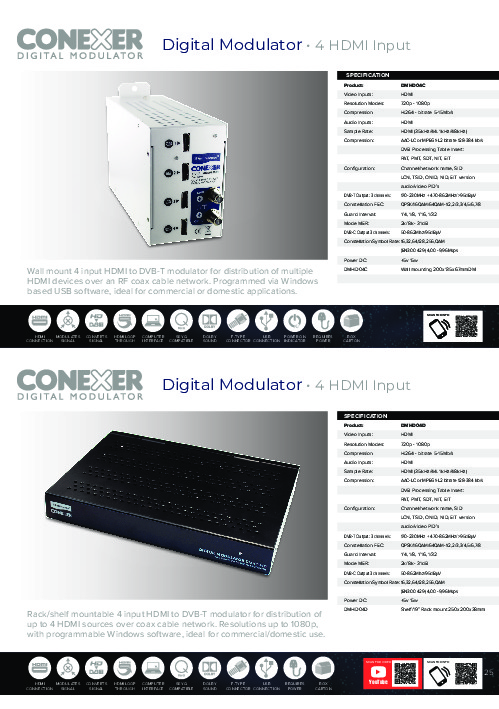

Wall mount 4 input HDMI to DVB-T modulator for distribution of multiple HDMI devices over an RF coax cable network. Programmed via Windows
based USB software, ideal for commercial or domestic applications.
Main features:
- Video Inputs: HDMI
- Resolution Modes: 720p - 1080p
- Compression H.264 - bitrate 5-15Mb/s
- Audio Inputs: HDMI
- Sample Rate: HDMI (35kHz/44. 1kHz/48kHz)
- Compression: AAC-LC or MPEG1-L2 bitrate 128-384 kb/s / DVB Processing Table Insert:PAT, PMT, SDT, NIT, EIT
- Configuration: Channel/network name, SID, LCN, TSID, ONID, NID, EIT version audio/video PID’s
- DVB-T Output: 3 channels: 170-230MHz + 470-862MHz/>95dBµV
- Constellation FEC: QPSK/16QAM/64QAM-1/2,2/3,3/4,5/6,7/8
- Guard Interval: 1/4, 1/8, 1/16, 1/32
- Mode MER: 2k/8k - 31dB
- DVB-C Output 3 channels: 50-862Mhz/95dBµV
- Constellation Symbol Rate:16,32,64,128,256,QAM ,(EN300 429) 4,00 -9,96Msps
- Power DC: +5v 15w
- DMHD04C Wall mounting 200x135x67mmDM
