2m KORDZ PRO CAT6 UTP Patch Lead RED

Slim Profile 3.9mm ∅ RJ45 Ethernet 28AWG
Compact Connector UL (CM) Fire Rating
*Special Order! NCNR - Check Lead Time*

SKU: K23045-0200-RD

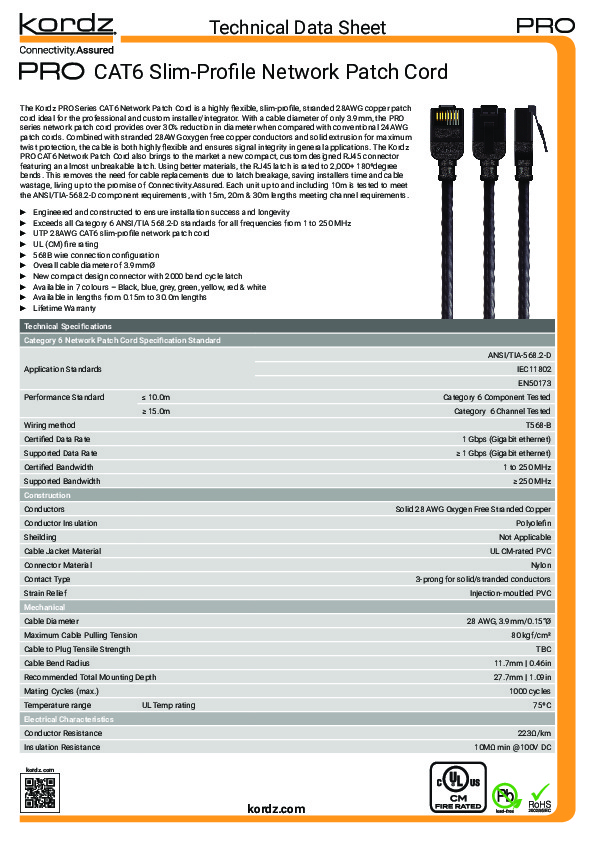

  Product Documents

2m KORDZ PRO CAT6 UTP Patch Lead RED

Slim Profile 3.9mm ∅ RJ45 Ethernet 28AWG
Compact Connector UL (CM) Fire Rating
*Special Order! NCNR - Check Lead Time*


Kordz PRO series CAT6 Network Patch Cord is a highly flexible, slim-profile, stranded 28AWG copper patch cord ideal for professional AV installations. Available in lengths from 0.15m to 30m the PRO patch cord features our custom designed compact RJ45 connector providing an almost unbreakable locking latch.

  • Engineered and constructed to ensure installation success and longevity
  • Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz
  • UTP 28AWG CAT6 slim-profile network patch cord
  • UL (CM) fire rating
  • 568B wire connection configuration
  • Overall diameter of 3.9mmØ
  • New compact design connector with 2000 bend cycle lock tab
  • Available in 7 colours - Black, blue, grey, green, yellow, red & white
  • Available in lengths from 0.15m to 30.0m lengths

Category 6 Network Patch Cord Specification Standard

Application Standards:

  • ANSI/TIA-568.2-D
  • IEC11802
  • EN50173

Performance Standard:

  • ≤ 10.0m - Category 6 Component Tested
  • > 10.0m - Category 6 Channel Tested
  • Wiring method: T568-B
  • Certified Data Rate: 1 Gbps (Gigabit ethernet)
  • Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
  • Certified Bandwidth: 1 to 250 MHz
  • Supported Bandwidth: ≥ 250 MHz

MECHANICAL

  • Cable Diameter: 28 AWG, 3.9mm/0.15”Ø
  • Maximum Cable Pulling Tension: 80 kgf/cmÇ
  • Cable to Plug Tensile Strength: TBC
  • Cable Bend Radius: 11.7mm | 0.46in
  • Recommended Total Mounting Depth: 27.7mm | 1.09in
  • Mating Cycles (max.): 1000 cycles
  • Temperature range: UL Temp rating - 75ºC

CONSTRUCTION

  • Conductors: Solid 28 AWG Oxygen Free Stranded Copper
  • Conductor Insulation: Polyolefin
  • Shielding: Not Applicable
  • Cable Jacket Material: UL CM-rated PVC
  • Connector Material: Nylon
  • Contact Type: 3-prong for solid/stranded conductors
  • Strain Relief: Injection-moulded PVC

ELECTRICAL CHARATERISTICS

  • Conductor Resistance: 223Ω/km
  • Insulation Resistance: 10MΩ min @100V DC
