WHYTE Series 17 Multiswitch 17x12

17 In 12 Out c/w Output Earth Bars Only
*Special Order! NCNR - Check Lead Time*
Discontinued available whilst stocks last!

SKU: WM1712

  Product Documents

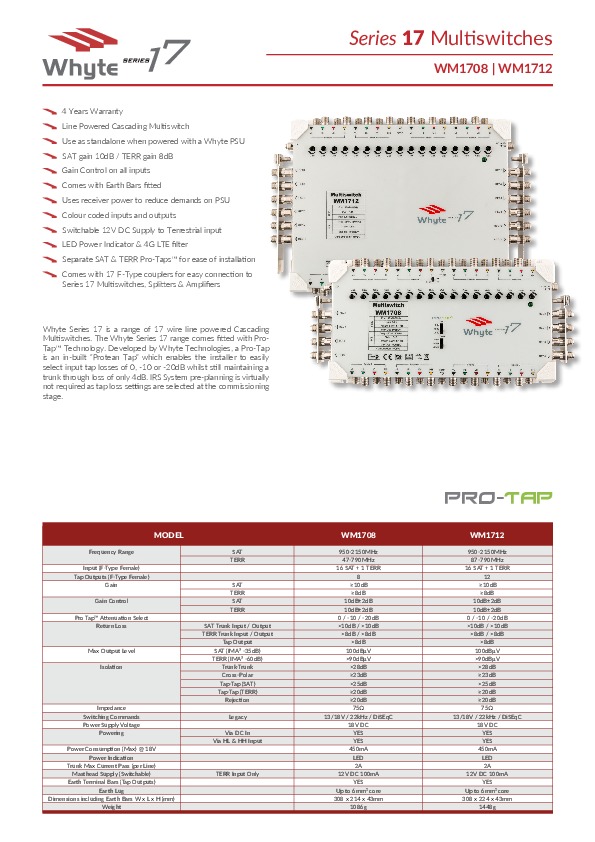

WHYTE Series 17 Multiswitch 17x12

17 In 12 Out c/w Output Earth Bars Only
*Special Order! NCNR - Check Lead Time*
Discontinued available whilst stocks last!


Whyte Series 17 is a range of 17 wire Cascading Multiswitches that combines up to 4 different satellites and Terrestrial TV/Radio. Series 17 Multiswitches can be used as Standalone Multiswitches when powered directly via the 18V Auxiliary input by using a Whyte 2.5A Power Supply Unit (model WPSU-2.5A).

(May require a PSU: WPSU-0.8 - WPSU-2.5)

Main features:

  • Gain Control on all inputs
  • Comes with Earth Bars fitted
  • SAT gain 10dB / TERR gain 8dB
  • Colour coded inputs and outputs
  • Line Powered cascading Multiswitch
  • LED Power Indicator and LTE filter
  • Switchable 12V DC Supply to Terrestrial input
  • Use as standalone when powered with a Whyte PSU
  • Uses the receiver power to reduce demands on system PSU
  • Use Whyte Series 17 Launch Amplifiers and Splitters to build large IRS Systems
  • Comes with 17 F-Type couplers for easy connection to Series 17 Multiswitches, Splitters and Amplifiers

Specifications:
Frequency Range: SAT 950-2150MHz | TERR 87-790MHz
4G LTE Filter: YES
Input (F-Type Female): 16 SAT + 1 TERR
Tap Outputs (F-Type Female): 12
Gain: SAT: ≥10dB | TERR:≥8dB
Gain Control: SAT 10dB±2dB | TERR 10dB±2dB
Protean Tap Attenuation: SAT & TERR 0/-10/20dB
Return Loss SAT Trunk Input/Output: SAT >10dB/>10dB | TERR >8dB/8dB
Return Loss Tap Output: >8dB
Max Output Level: SAT (IMA³ -35dB) 100dBμV | TERR (IMA³ -60dB) >90dBμV
Isolation: Trunk - Trunk >28dB | Cross Polar: ≥23dB | Tap-Tap SAT >25dB | Tap-Tap TERR >20dB | Rejection ≥20dB
Impedance: 75 Ohms
Switching Commands: Legacy 13/18V / 22kHz Tone / DiSEqC
Power Supply Voltage: 18V DC
Powering: Via DC Input / Via HL and HH Input
Power Consumption (Max)@18V: 450mA
Power Indication: LED
Trunk Max Current Pass (per SAT line): 2A
Masthead Power Supply (Switchable): TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs): Fitted
Earth Lug: Up to 6mm² Core
Dimensions Including Earth Bars (mm): 308 x 224 x 43
Weight: 1448g
