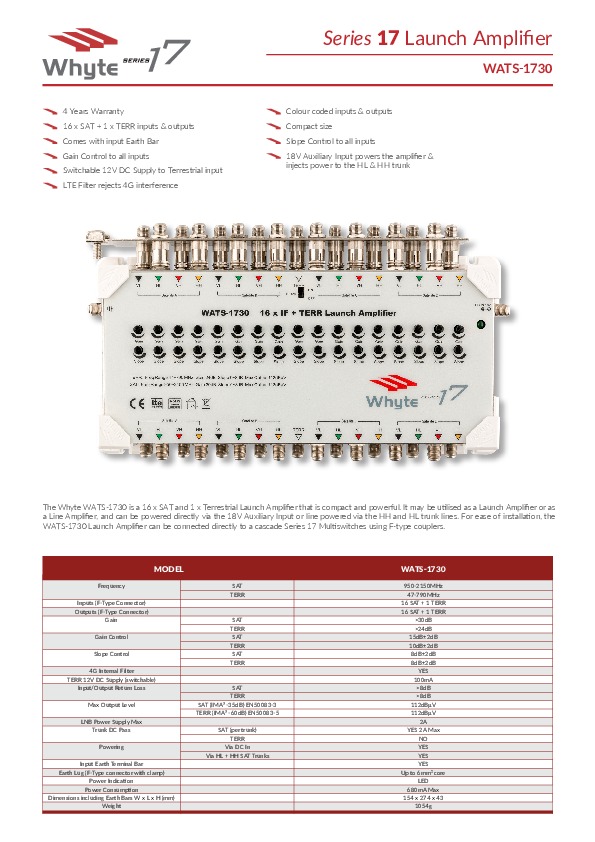

The Whyte WATS-1730 is a 16 x SAT and 1 x Terrestrial Launch Amplifier that is compact and powerful.
It may be utilised as a Launch Amplifier or as a Line Amplifier, and can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. For ease of installation, the WATS-1730 Launch Amplifier can be connected directly to a cascade Series 17 Multiswitches using F-type couplers.
Main features:
- Compact size
- 16 SAT + 1 TERR Inputs
- Gain Control to all inputs
- Slope Control to all inputs
- Comes with input Earth Bar
- Colour coded inputs & outputs
- LTE Filter rejects 4G interference
- Switchable 12V DC Supply to Terrestrial input
- 18V Auxiliary Input powers the amplifier & injects power to the HL & HH trunk
Specifications:
Frequency: SAT 950-2150MHz | TERR 87-790MHz
Inputs: 16 SAT + 1 TERR
Outputs: 16 SAT + 1 TERR
Gain: SAT >30dB | TERR >24dB
Gain Control: SAT 15±1dB | TERR 10±1dB
Slope Control: SAT 8±2dB | TERR 8±2dB
4G Filter: YES
TERR 12V DC Masthead Supply (switchable): 100mA
Input/Output Return Loss: SAT >8dB | TERR >8dB
Max Output Level SAT: SAT (IMA³ -35dB) EN50083-3 112dBμV
Max Output Level TERR: TERR (IMA³ -60dB) EN50083-5 112dBμV
LNB Power Supply Max: 2A
SAT Trunk DC Pass: 2A Max
TERR Trunk DC Pass: NO
Powering: Via DC Input | Via SAT HL + HH Trunks
Power Consumption: 680mA Max
Power Indication: LED
Input Earth Bar: Fitted
Earth Lug: Up to 6mm² Core
Dimensions Including Earth Bars (mm): 154 x 274 x 43
Weight: 1054g
