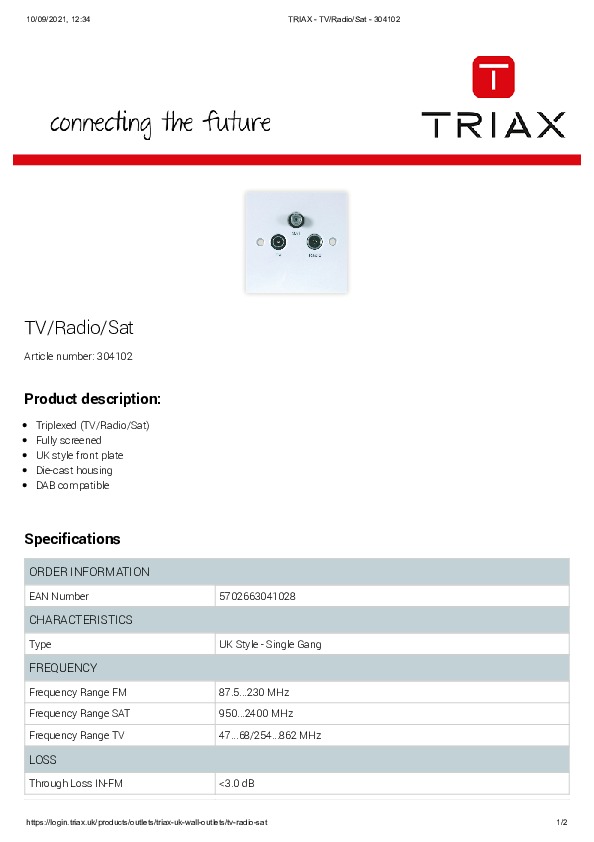

TV/Radio/Sat
Main features:
- Triplexed (3 way) UHF-FM/DAB-IF
- Fully Screened
- UK style front plate
- Die-cast housing
- DAB compatible
- Will fit standard 25mm flush mounting box
Characteristics
Type: UK Style - Single Gang
Frequency
Frequency Range FM: 87.5...230 MHz
Frequency Range SAT: 950...2400 MHz
Frequency Range TV: 47...68/254...862 MHz
Loss
Through Loss IN-FM: <3.0 dB
Through Loss IN-SAT: <3.0 dB
Through Loss IN-TV: <2.5 dB
Operational
DC Passthrough SAT: Yes
Connectors
Connector FM: IEC-female
Connector IN-OUT: Spring Clamp Termination
Connector TV: IEC-male
Mechanical
Product Depth: 35 mm
Packaging Depth: 0,505 m
Packaging Height: 0,455 m
Remarks: Screened Die-Cast housing
Product Width: 86 mm
Product Height: 86 mm
