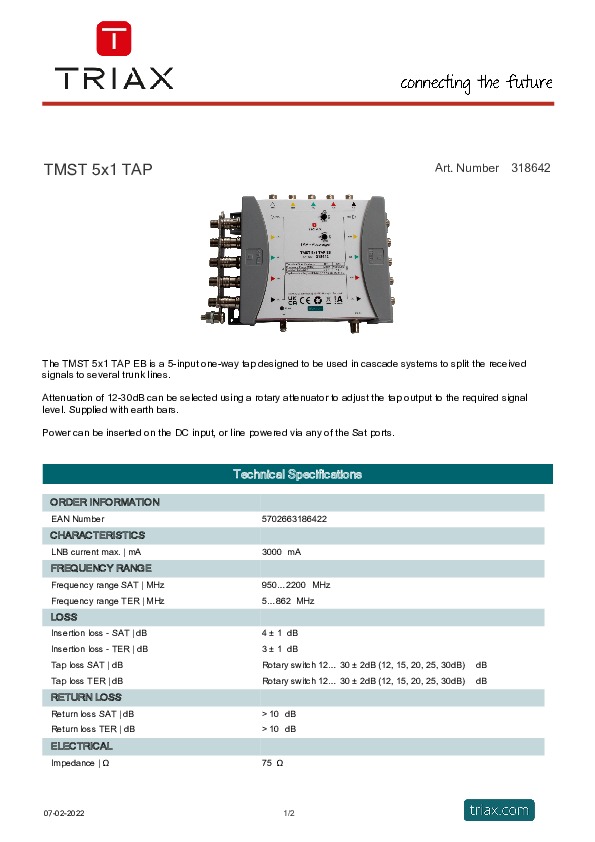

The TMST 5x1 TAP EB is a 5-input one-way tap designed to be used in cascade systems to split the received signals to several trunk lines.
Attenuation of 12-30dB can be selected using a rotary attenuator to adjust the tap output to the required signal level. Supplied with earth bars.
Power can be inserted on the DC input, or line powered via any of the Sat ports.
Main features:
Connectors:
Number of trunk inputs: 4 SAT, 1 TER
Number of trunk outputs: 4 SAT, 1 TER
Number of inputs: 5
Number of outputs: 4 SAT, 1 TER
Colorcoding @IF/TER inputs: VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER
Connector Type: F-female
Connector DC: F-female
Frequency range:
Frequency range TER: 5…862 MHz
Frequency range SAT: 950…2200 MHz
Loss
Tap loss SAT: Rotary switch 12… 30 ± 2dB (12, 15, 20, 25, 30dB) dB
Tap loss TER: Rotary switch 12… 30 ± 2dB (12, 15, 20, 25, 30dB) dB
Insertion loss - SAT: 4 ± 1 dB
Insertion loss - TER: 3 ± 1 dB
Electrical:
Impedance: 75 Ω
Return loss:
Return loss SAT: > 10 dB
Return loss TER: > 10 dB
Operational:
DC Current consumption: 40 mA
LINE power DC voltage (max.): 15…20 VDC
LINE power current (max.): 2000 mA
Control LEDs: Green LED (Power)
Temperature - operating: -20…+55 °C
