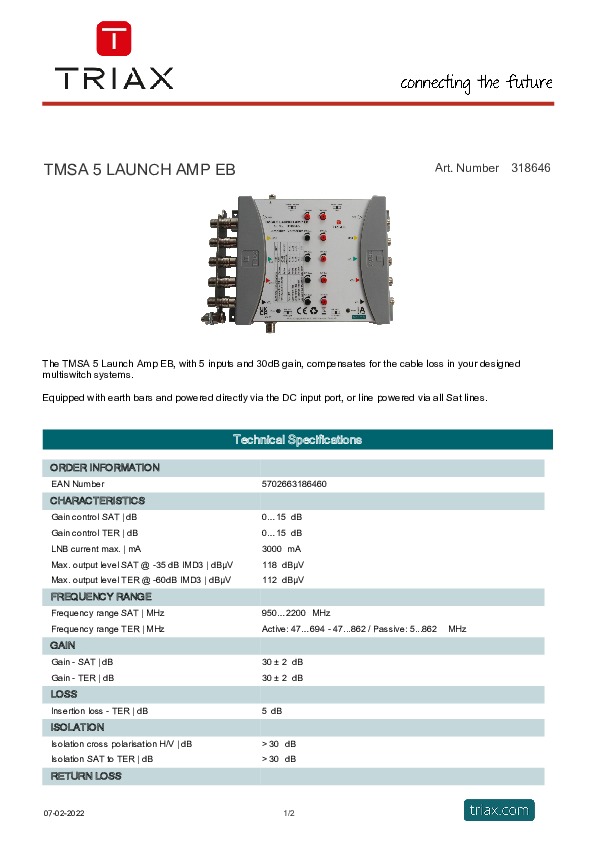

The TMSA 5 Launch Amp EB, with 5 inputs and 30dB gain, compensates for the cable loss in your designed multiswitch systems.
Equipped with earth bars and powered directly via the DC input port, or line powered via all Sat lines.
Main features:
Electrical:
Impedance: 75 Ω
Connectors:
Connector Type: F-female
Connector DC: F-female
Number of trunk inputs: 5
Number of trunk outputs: 5
Colour coding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER
Characteristics:
Input polarity gain control TER: 0…15 dB
Input polarity gain control SAT:0…15 dB
Max. output level SAT @ -35 dB IMD3: 118 dBµV
Max. output level TER @ -60dB IMD3: 112 dBµV
LNB current max.: 3000 mA
Frequency range:
Frequency range TER: Active: 47…694 - 47...862 / Passive: 5...862 MHz
Frequency range SAT: 950…2200 MHz
Gain
Gain - SAT: 30 ± 2 dB
Gain - TER: 30 ± 2 dB
Loss
Insertion loss - TER: 5 dB
Isolation
Isolation SAT to TER: > 30 dB
Isolation cross polarisation H/V: > 30 dB
Return loss
Return loss SAT:> 10 dB
Operational
LINE power DC voltage (max.): 15…20 VDC
LINE power current (max.): 2000 mA
PSU output DC voltage: 18 VDC
ESD protection:4KV inputs & sub outputs
DC Current consumption: 500mA max. @18V DC mA
PSU/adapter Art number: 318165, 318166, 318167
Control LEDs: Green LED (Power)
Temperature - operating: -20…+50 °C
