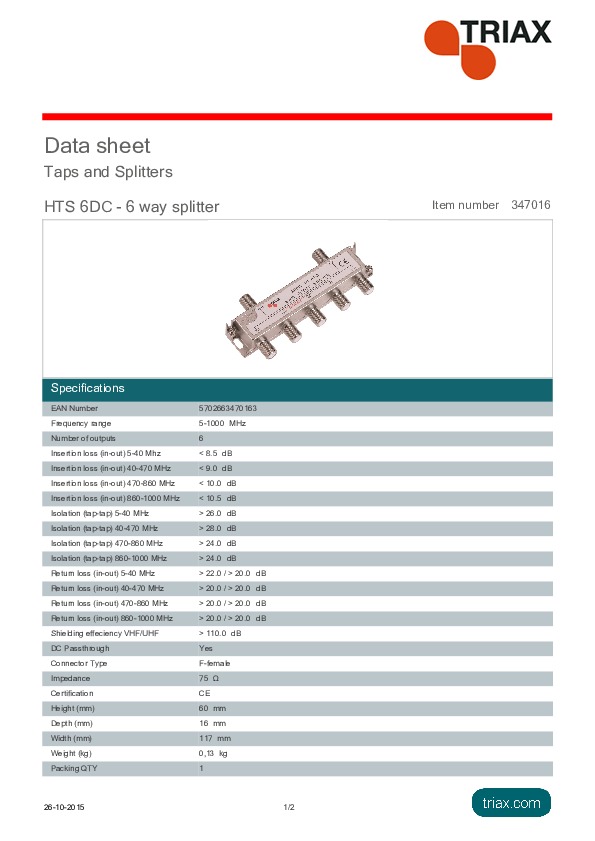

HTS 6DC - 6 way splitter. Low insertion loss. All ports impedance 75 Ohm. High isolation. Class A shielding - ideal for your TV system.
SHIELDING
Shielding effeciency VHF/UHF: > 110.0 dB
FREQUENCY
Frequency range: 5...1000 MHz
LOSS
Insertion loss (in-out) 5-40 Mhz: < 8.5 dB
Insertion loss (in-out) 40-470 MHz: < 9.0 dB
Insertion loss (in-out) 470-860 MHz: < 10.0 dB
Insertion loss (in-out) 860-1000 MHz: < 10.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz : > 26.0 dB
Isolation (tap-tap) 40-470 MHz: > 28.0 dB
Isolation (tap-tap) 470-860 MHz: > 24.0 dB
Isolation (tap-tap) 860-1000 MHz: > 24.0 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz: > 22.0 / > 20.0 dB
Return loss (in-out) 40-470 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 470-860 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 860-1000 MHz: > 20.0 / > 20.0 dB
ELECTRICAL
Impedance: 75 Ω
OPERATIONAL
DC Passthrough: Yes
CONNECTORS
Number of outputs: 6
MECHANICAL
Product Height: 60 mm
Product Width: 117 mm
Product Depth: 16 mm
