TRIAX 12 Way F Splitter (5-1000MHz)

Front Input Connection Style (was 347912)
All Ports AC/DC Blocked at Inner Conductor
*Special Order! NCNR - Check Lead Time*

SKU: 343255

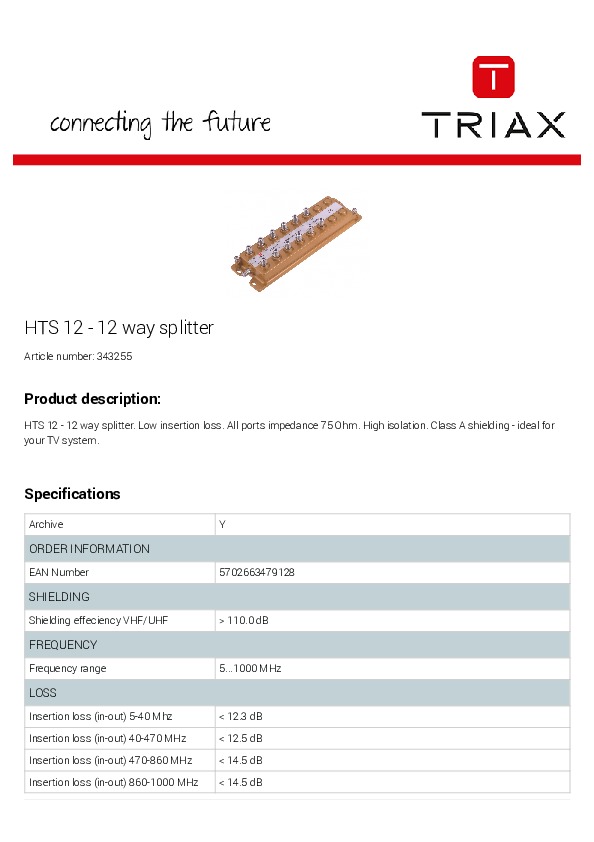

  Product Documents

TRIAX 12 Way F Splitter (5-1000MHz)

Front Input Connection Style (was 347912)
All Ports AC/DC Blocked at Inner Conductor
*Special Order! NCNR - Check Lead Time*


HTS 12 - 12 way splitter. Low insertion loss. All ports impedance 75 Ohm. High isolation. Class A shielding - ideal for your TV system.

SHIELDING
Shielding effeciency VHF/UHF: > 110.0 dB

FREQUENCY
Frequency range: 5...1000 MHz

LOSS
Insertion loss (in-out) 5-40 Mhz: < 12.3 dB
Insertion loss (in-out) 40-470 MHz: < 12.5 dB
Insertion loss (in-out) 470-860 MHz: < 14.5 dB
Insertion loss (in-out) 860-1000 MHz: < 14.5 dB

ISOLATION
Isolation (tap-tap) 5-40 MHz :< 26.0 dB
Isolation (tap-tap) 40-470 MHz: > 26.0 dB
Isolation (tap-tap) 470-860 MHz: > 23.0 dB
Isolation (tap-tap) 860-1000 MHz: > 23.0 dB

RETURN LOSS
Return loss (in-out) 5-40 MHz: > 17.0 / > 17.0 dB
Return loss (in-out) 40-470 MHz: > 20.0 / > 20.0 dB
Return loss (in-out) 470-860 MHz: > 17.0 / > 17.0 dB
Return loss (in-out) 860-1000 MHz: > 17.0 / > 17.0 dB

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
DC Passthrough: NO

CONNECTORS
Number of outputs: 12

MECHANICAL
Product Height: 78 mm
Product Width: 242 mm
Product Depth: 44 mm
