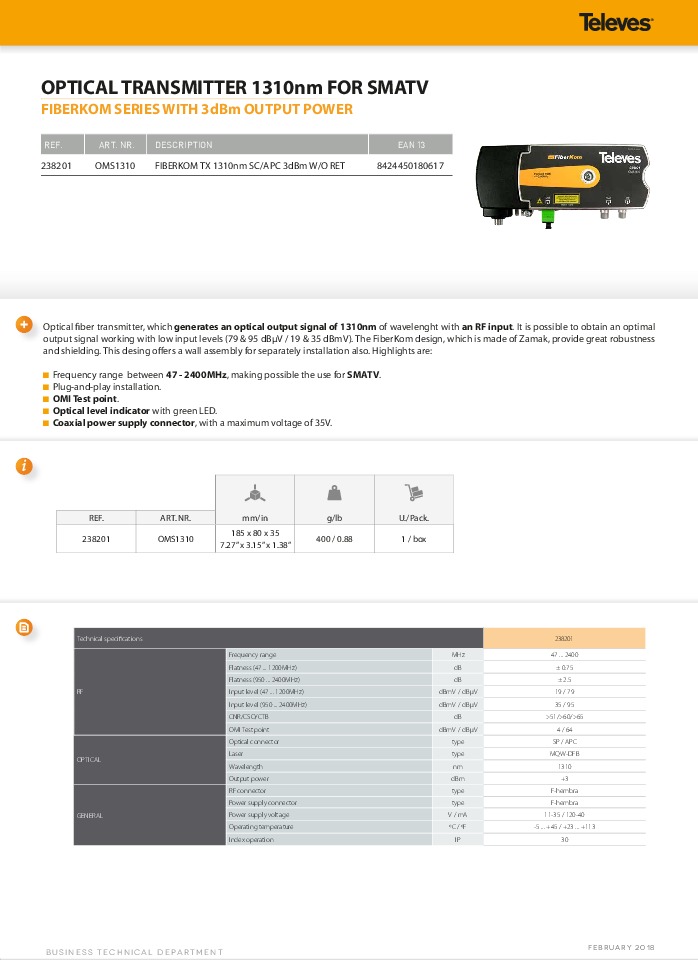

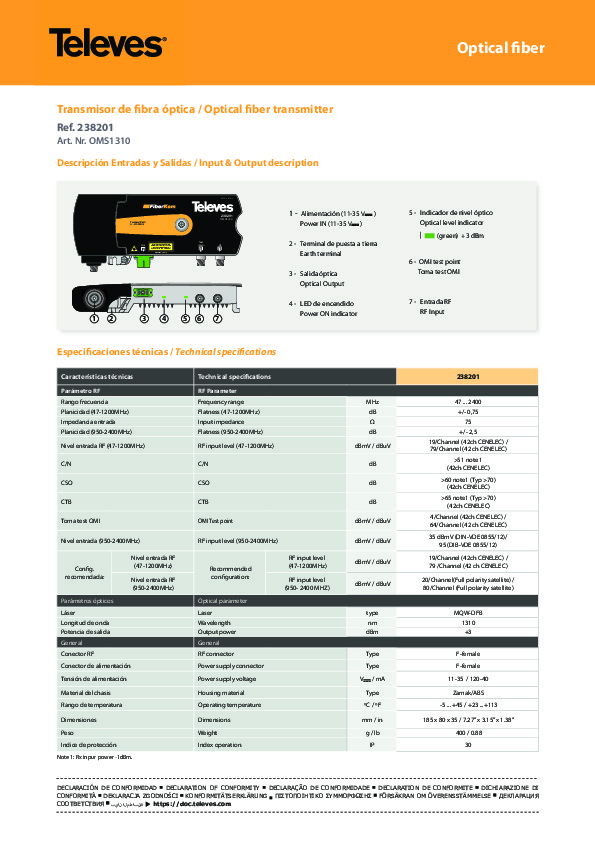

SMATV FiberKom optical transmitter (without Return Path)
1310 nm, Po 3 dBm
Generates an optical output signal of 1310nm of wavelengtH modulated by the input RF SMATV signal (47 MHz- 2400 MHz). It is possible to obtain an optimal output signal working with low input levels. The optical output power is 3 dBm.
HIGHLIGHTS
- SMATV-compatible: up to 2400 MHz input bandwidth
- "Plug & Play" installation
- FiberKom design: made of Zamak, provides great robustness and shielding. The design also offers a wall assembly for separately installation.
MAIN FEATURES
- OMI Test Point
- Optical level indicator with green LED
- Coaxial power supply connector, with a maximum voltage of 35V
- SC/APC optical connectors, and F-type connectors for RF
RF
Frequency range (MHz): 47 - 2400
Flatness: 47-1200 MHz (dB): ±0.75
Flatness: 950-2400 MHz (dB): ±2.5
Input level: 47-1200 MHz (dBμV): 79
Input level: 950-2400 MHz ((dBμV): 95
C/N (dB): >51
CSO (dB): >60
CTB (dB): >65
OMI Test point (dBμV): 64
OPTICAL
Optical connector (type): SP / APC
Laser (type): MQW - DFB
Wavelength (nm): 1310
Output power (dBm): +3
GENERAL
RF connector (type): F-female
Power supply connector (type): F-female
Power supply voltage (V / mA): 11-35 / 120-40
Operating temperature (ºC): -5 ... +45
Index operation (IP): 30
