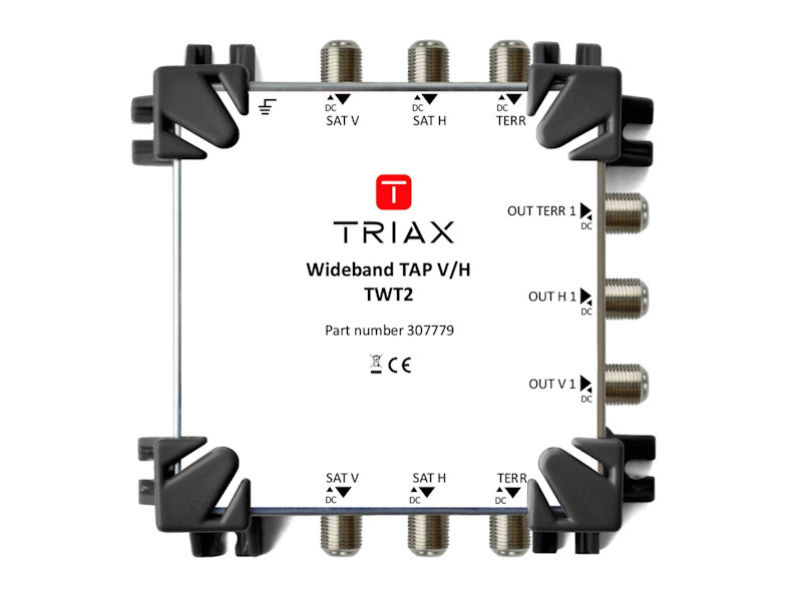

The TWT2 tap is designed to be used with Wideband systems with Satellite IF frequencies from 290 MHz to 2340 MHz, and Terrestrial frequencies between 5 MHz and 862 MHz.
CHARACTERISTICS
Type: Tap
FREQUENCY
Frequency range SAT: 290...2340 MHz
Frequency range TER: 5...862 MHz
LOSS
Tap loss SAT: 11.0 dB
Tap loss TER: 13.0 dB
Through loss - Trunk SAT: 2.0 dB
Through loss - Trunk TER: 1.5...2.0 dB
ELECTRICAL
Impedance: 75 Ω
CONNECTORS
Connector IN: F-female
Connector OUT: F-female
Number of inputs: 3
Number of outputs: 6
MECHANICAL
Dimensions product (H x D x W): 130x130x50 mm
