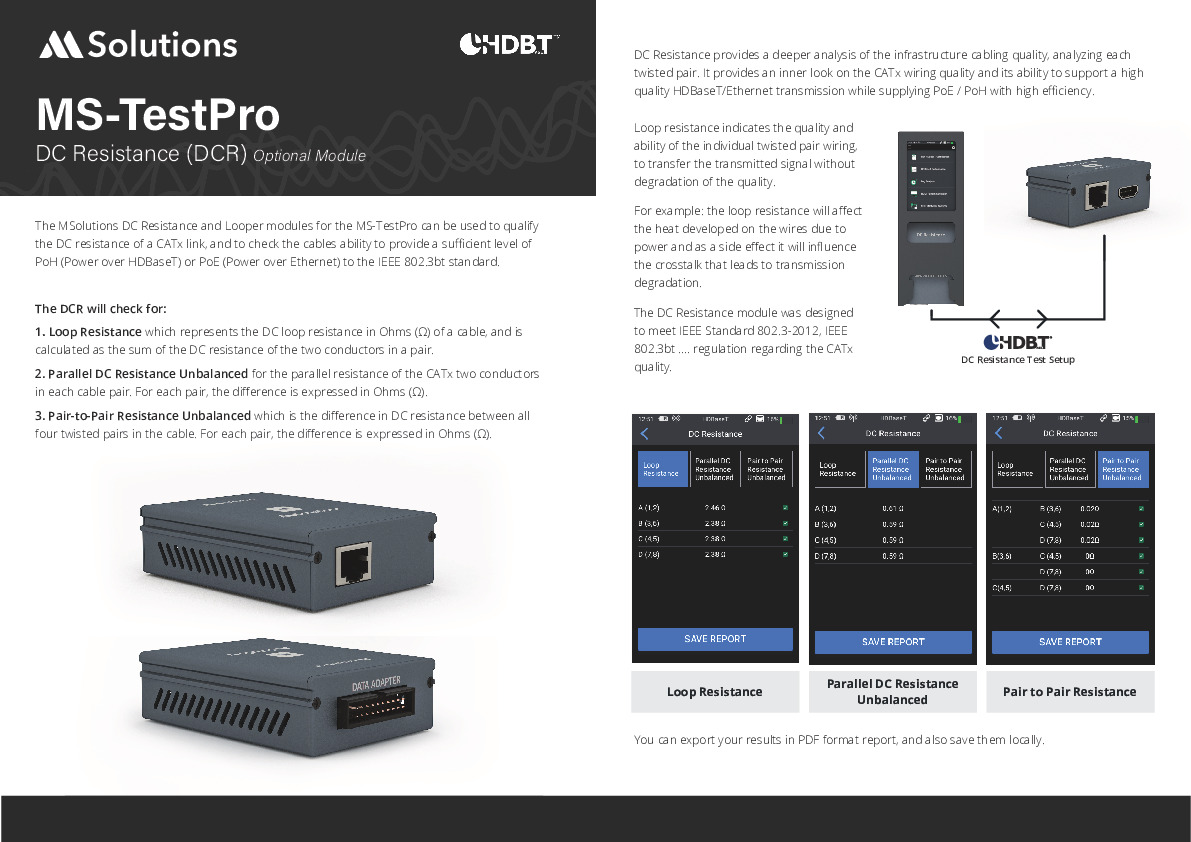

The optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT). The DCR will check for: 1. Loop Resistance which represents the DC loop resistance in Ohm (Ω) of a cable, and is calculated as the sum of the DC resistance of the two conductors in a pair. 2. Parallel DC Resistance Unbalanced for the parallel resistance of the CATx two conductors in each cable pair. For each pair, the difference is expressed in ohms (Ω). Finally, 3. Pair-to-Pair Resistance Unbalanced which is the difference in DC resistance between all four twisted pairs in the cable. For each pair, the difference is expressed in ohms (Ω).
Key Features:
- Expansion module for the MS-TestPro 104B
- Adds capability for DC Resistance testing on the MS-TestPro MS-104B
- For use with HDBaseT, IP, and PoE infrastructures
- Tests for DC Loop Resistance (in ohms), Unbalanced Parallel DC Resistance, and Unbalanced Pair to Pair Resistance
- Tests for PoE to IEEE 802.3bt standard
Specifications:
- DCR & Looper modules to fit into MS-104B MS-TestPro tester
- DCR module dimensions (W x D x H): 60mm x 84mm x 25mm
- DCR module weight: 0.1kg
- Looper module dimensions (W x D x H): 60mm x 33mm x 25mm
- Looper module weight: 0.1kg
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Storage temperature: -4°F to 140°F (-20°C to 60°C)
- Operating humidity: 0-80% non condensing
Package Contents:
- 1 x DC Resistance Module
- 1 x Looper Module
