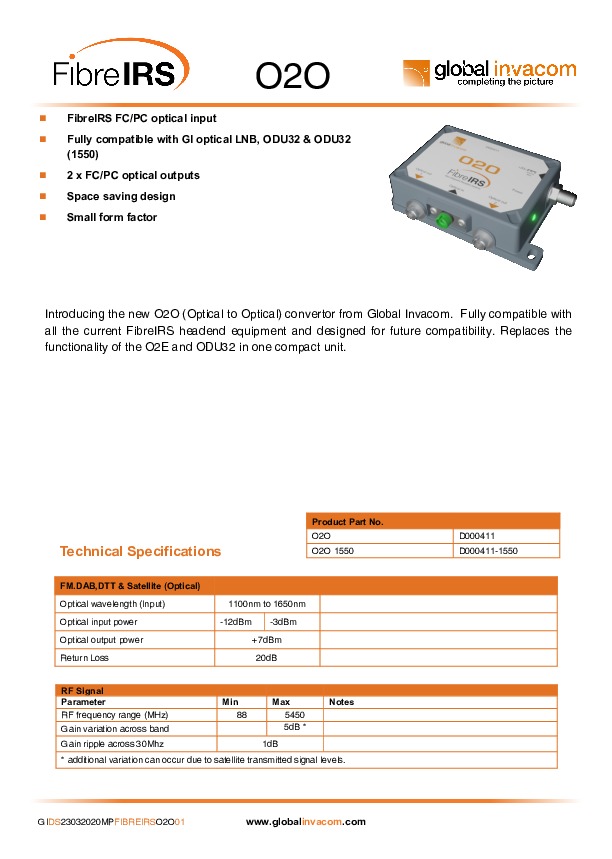

The O2O (Optical to Optical) convertor from Global Invacom is fully compatible with
all the current FibreIRS headend equipment and designed for future compatibility.
Replaces the functionality of the O2E and ODU32 in one compact unit.
- FibreIRS FC/PC optical input
- Fully compatible with GI optical LNB, ODU32 & ODU32 (1550)
- 2 x FC/PC optical outputs
- Space saving design
- Small form factor
FM.DAB,DTT & Satellite (Optical)
Optical wavelength (Input): 1100nm to 1650nm
Optical input power: -12dBm -3dBm
Optical output power: +7dBm
Return Loss: 20dB
RF Signal
RF frequency range (MHz): Min 88 / Max 5450
Gain variation across band: Max 5dB *
Gain ripple across 30Mhz: 1dB
- additional variation can occur due to satellite transmitted signal levels.
DC specification
Input voltage: 20V
Current consumption: 150mA Max
Connectors
Input: FC/PC
Output: 2 x FC/PC
Power supply: F connector
Environmental Specification
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +70°C
