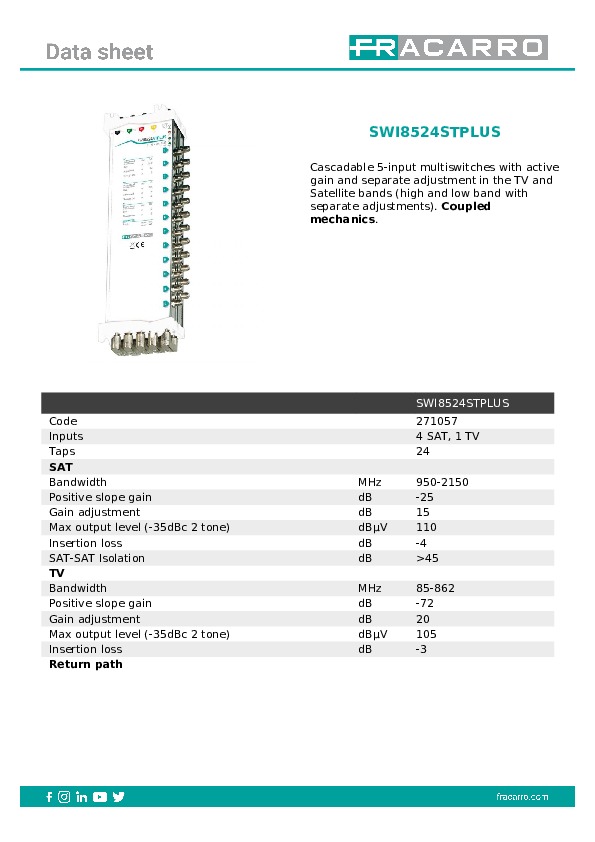

Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments). Coupled mechanics.
Description
Inputs: 4 SAT, 1 TV
Taps: 24
Satellite
Bandwidth MHz: 950-2150
Positive slope gain dB: -25
Gain adjustment dB: 15
Max output level (-35dBc 2 tone) dBµV: 110
Insertion loss dB: -4
SAT-SAT Isolation dB: >45
TV
Bandwidth MHz: 85-862
Positive slope gain dB: -72
Gain adjustment dB: 20
Max output level (-35dBc 2 tone) dBµV: 105
Insertion loss dB: -3
Return path
Bandwidth MHz: 5-65
Gain dB: -5
Insertion loss dB: 2
Max output level (-35dBc 2 tone) dBµV: 100
Insertion loss dB: -2
Features
Current consumption mA, V 440, 14 340, 18
Dimensions (w x d x h) mm: 355x120x60
Operating Temperature °C: -10 to +55
