FRACARRO SWI8512+ Cascade Multiswitch

5 In 12 Out XS5+ (May require 18V PSU)
4 Year Warranty

SKU: 271056

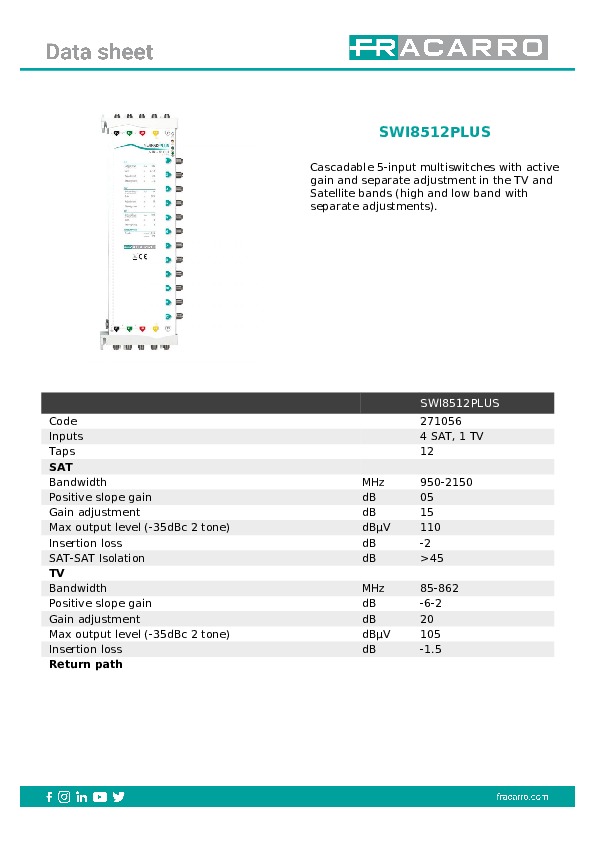

  Product Documents

FRACARRO SWI8512+ Cascade Multiswitch

5 In 12 Out XS5+ (May require 18V PSU)
4 Year Warranty


Cascadable 5-input multiswitches with active gain and separate adjustment in the TV and Satellite bands (high and low band with separate adjustments).

Description
Inputs: 4 SAT, 1 TV
Taps: 12

Satellite
Bandwidth MHz: 950-2150
Positive slope gain dB: 05
Gain adjustment dB: 15
Max output level (-35dBc 2 tone) dBµV:110
Insertion loss dB: -2
SAT-SAT Isolation dB: >45

TV
Bandwidth MHz: 85-862
Positive slope gain dB: -6-2
Gain adjustment dB: 20
Max output level (-35dBc 2 tone) dBµV: 105
Insertion loss dB: -1.5

Return path
Bandwidth MHz: 5-65
Gain dB: -5Max output level (-35dBc 2 tone) dBµV: 100
Insertion loss dB: -1

General parameters
Current consumption mA, V : 220, 14 170, 18
Dimensions (w x d x h) mm: 340x120x30
Operating Temperature °C: -10 to +55
