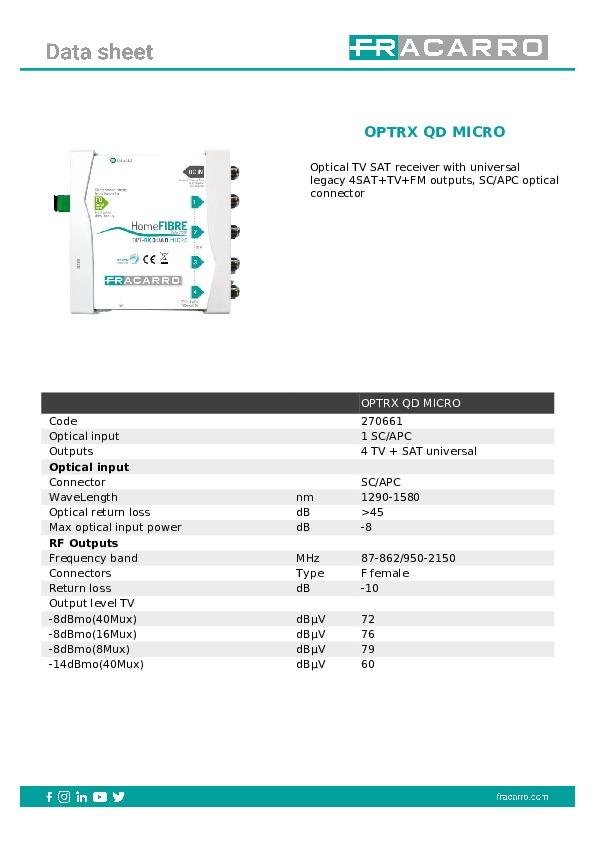

OPTRX QD MICRO
Optical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector
Description
- Optical input: 1 SC/APC
- Outputs: 4 TV + SAT universal
- Optical input Connector: SC/APC
- WaveLength nm: 1290-1580
- Optical return loss dB: >45
- Optical input power dB: -8 to -14dBm
- Recomended split ratio 1:32
RF Outputs
- Frequency band MHz: 87-862/950-2150
- Connectors Type: F female
- Return loss dB: -10
- Output level TV
- -8dBmo(40Mux) dBµV: 72
- -8dBmo(16Mux) dBµV: 76
- -8dBmo(8Mux) dBµV: 79
- -14dBmo(40Mux):dBµV: 60
- -14dBmo(16Mux) dBµV: 64
- -14dBmo(8Mux): dBµV: 67
Output level SAT
- -8dBmo dBµV: 68
- -14dBmo dBµV: 56
Features
Power supply: Vac/Hz
Consumption W: 2.8
Current consumption mA, V: 200, 12
Power supply V: 14/18 on all outputs
Operating temperature °C: -5 – +50
Leds dBµV: Power status green LED
Standard conformity: 2014/53/UE, 2011/65/UE
Dimensions mm: 120x100x30
