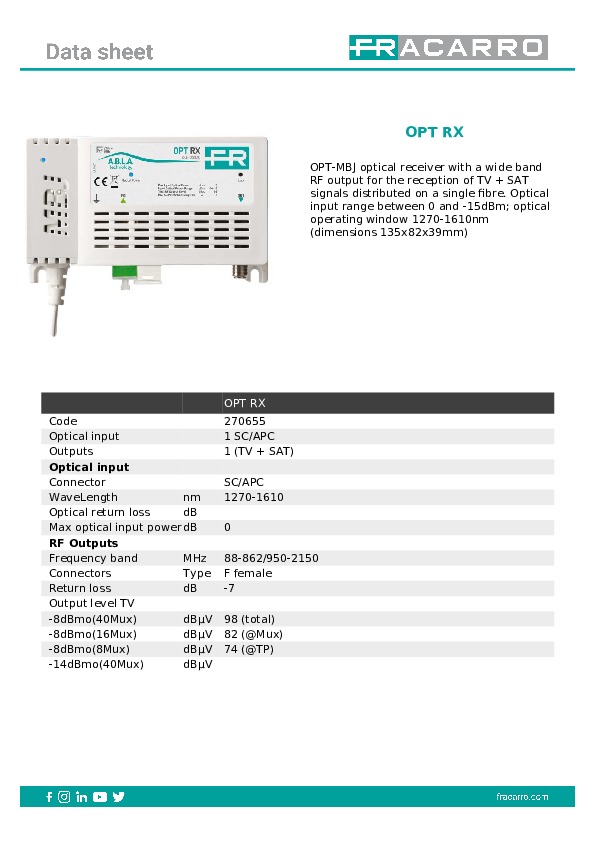

OPT RX
Main features:
- OPT-MBJ optical receiver with a wide band RF output for the reception of TV + SAT signals distributed on a single fibre.
- Optical input range between 0 and -15dBm; optical operating window 1270-1610nm (dimensions 135x82x39mm)
Description: OPT RX
Optical input:1 SC/APC
Outputs: 1 (TV + SAT)
Optical input
Connector: SC/APC
WaveLength nm : 1270-1610
Optical return loss : dB
Max optical input power: dB 0
RF Outputs
Frequency band: MHz 88-862/950-2150
Connectors: Type F female
Return loss: dB-7
Output level TV
-8dBmo(40Mux) dBµV: 98 (total)
-8dBmo(16Mux) dBµV: 82 (@Mux)
-8dBmo(8Mux) dBµV: 74 (@TP)
-14dBmo(40Mux) dBµV
-14dBmo(16Mux) dBµV
-14dBmo(8Mux) dBµV
Output level SAT
-8dBmo: dBµV
-14dBmo: dBµV
Features
Power supply: Vac/Hz 230, 50-60
Consumption: W 1.5
Current consumption: mA, V
Power supply: V
Operating temperature °C: -10 – +55
Leds: dBµV Blu on / Optical level in the correct range, Lock RF signal
