OPT 3US TX

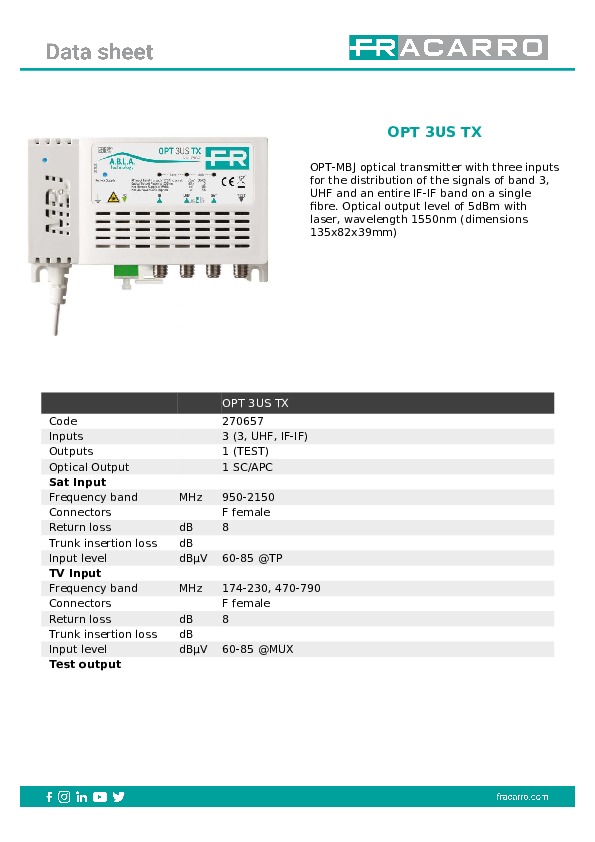

OPT-MBJ optical transmitter with three inputs for the distribution of the signals of band 3, UHF and an entire IF-IF band on a single fibre. Optical output level of 5dBm with laser, wavelength 1550nm (dimensions 135x82x39mm)
Description
Inputs: 3 (3, UHF, IF-IF)
Outputs : 1 (TEST)
Optical Output: 1 SC/APC
Sat Input
Frequency band MHz: 950-2150
Connectors: F female
Return loss dB: 8
Input level dBµV: 60-85 @TP
TV Input
Frequency band MHz: 174-230, 470-790
Connectors: F female
Return loss dB: 8
Input level dBµV: 60-85 @MUX
Test output
Frequency band MHz: 174-230 / 470-790 / 950-2150
Connectors: F female
Test attenuation: dBµV
Optical Output
Connectors: SC/APC
WaveLength: 1550
Optical power dB: 5
Optical return loss dBµV: >30
Features
Power supply Vac, Hz: 230, 50-60
Consumption W:5.5
Remote feeding mA, V:100, 12 (on the UHF input)
Operating temperature °C: -10 – +55
AGC Dynamic dB: 25
Leds dBµV:Blue on / Signal in the correct A.B.L.A. range, remote feeding active
Standard conformity: CEI EN 50083-2 EN60065
Dimensions mm: 135x82x39
