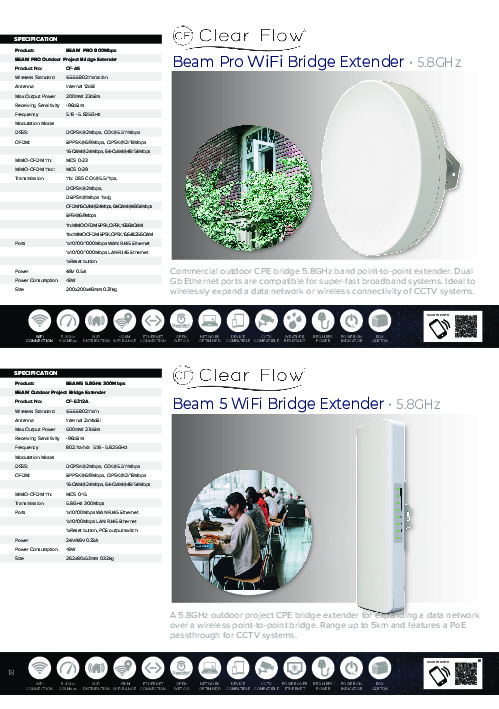

A 5.8GHz outdoor project CPE bridge extender for expanding a data network over a wireless point-to-point bridge. Range up to 5km and features a PoE passthrough for CCTV systems.
Main features:
• Wireless Standard: IEEEE802.11a/n
• Antenna : Internal 2x14dBi
• Max Output Power: 500mW 27dBm
• Receiving Sensitivity: -96dBm
• Frequency: 802.11a/n/a 5.18 - 5.825GHz
• Modulation Mode:DSSS: DQPSK@2Mbps, CCK@5.511Mbps / OFDM: BPPSK@6/9Mbps, QPSK@12/18Mbps / 16-QAM@24Mbps, 64-QAM@48/54Mbps
• MIMO-OFDM 11n: MCS 0-15
• Transmission: 5.8GHz 300Mbps
• Ports: 1x10/100Mbps WAN RJ45 Ethernet / 1x10/100Mbps LAN RJ45 Ethernet / 1xReset button, POE output switch
• Power 24V/48V 0.32A (48V required for POE output to power a camera)
• Power Consumption: <8W
• Size: 262x80x53mm 0.32kg
