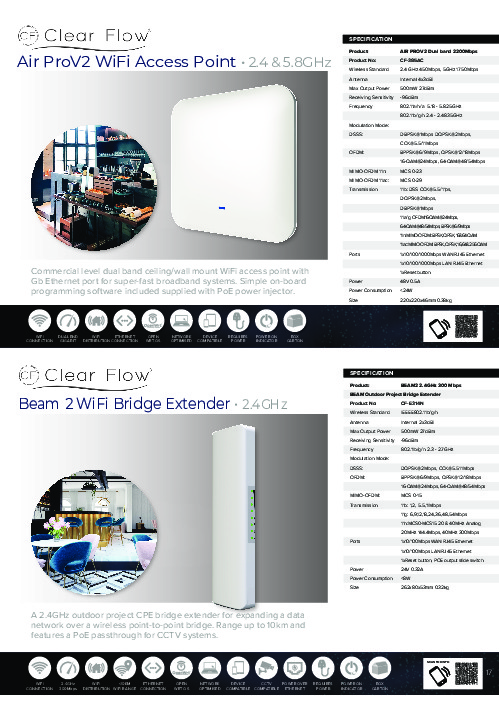

A 2.4GHz outdoor project CPE bridge extender for expanding a data network over a wireless point-to-point bridge. Range up to 10km and
features a PoE passthrough for CCTV systems.
Main features:
• Wireless Standard IEEEE802.11b/g/n
• Antenna Internal 2x3dBi
• Max Output Power 500mW 27dBm
• Receiving Sensitivity -96dBm
• Frequency 802.11b/g/n 2.3 - 2.7GHz
• Modulation Mode: DSSS: DQPSK@2Mbps, CCK@5.511Mbps /OFDM: BPPSK@6/9Mbps, QPSK@12/18Mbps /16-QAM@24Mbps, 64-QAM@48/54Mbps
• MIMO-OFDM: MCS O-15
•Transmission 11b: 1,2, 5.5,11Mbps / 11g: 6,9,12,18,24,36,48,54Mbps /11n:MCS0-MCS15 20 & 40MHz Analog / 20MHz 144.4Mbps, 40MHz 300Mbps•Ports 1x10/100Mbps WAN RJ45 Ethernet
• 1x10/100Mbps LAN RJ45 Ethernet
• 1xReset button, POE output slide switch
• Power 24V/48V 0.32A (48V required for POE output to power a camera)
• Power Consumption <8W
• Size 262x80x53mm 0.32kg
