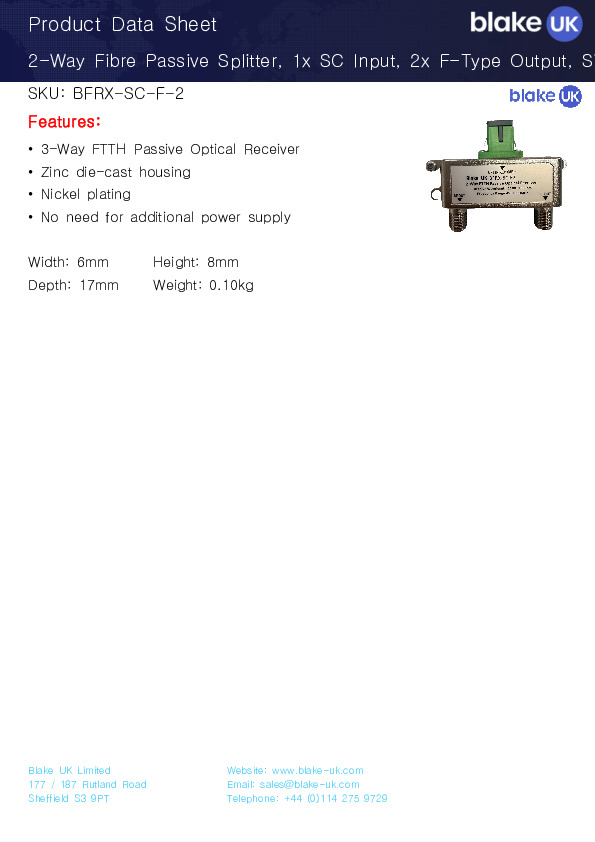

Single Mode Fibre Optical 2-Way FTTH Passive Optical Splitter SC Optical Input, RF F-Type Output
Our 2-way passive optical receiver is designed for FTTH (Fibre to the Home) networks and does not require an additional power supply. Housed in a robust zinc die-cast enclosure with nickel plating, it provides reliable signal conversion without active components.
This unit can also be used across a range of applications, including long-haul fibre networks, data centres, security systems, CATV networks, RF-over-Fibre systems, medical imaging, broadcast A/V systems, and satellite communications.
What is a Passive Optical Splitter?
A passive optical splitter acts as an end-point that receives and converts incoming optical signals into electrical signals, enabling data transmission over the network. Unlike active receivers, it requires no external power source or internal electronic amplification.
Features:
- Passive Design - No external power required
- SC/APC optical input with dual F-type RF outputs
- Zinc die-cast housing with nickel plating
- Compact and reliable for diverse applications
- Designed for FTTH and compatible with wider fibre systems
Applications
Primarily intended for FTTH use, this receiver is also suitable for use in data infrastructure, RF-over-Fibre systems, CATV, and more. Its passive, power-free operation makes it ideal where reliability and simplicity are key. Use in homes, data centres, and broadcast setups where fibre signal conversion is required.
Technical Specifications:
| Symbol | Parameter | Conditions | Unit |
|---|---|---|---|
| λ | Optical Wavelength | 1100~1650 | nm |
| Pin | Optical Input Power (continuous) | -10~+2 | dBm |
| F | Frequency Range | 45~1000 | MHz |
| FL | Frequency Response (45~1000MHz) | ± 0.75 | dB |
| RF Output Level (0dBm Optical Input) | BFRX-SC-F2 | >72 | dBuV |
| BFRX-SC-F3 | >70 | dBuV | |
| BFRX-SC-F4 | >68 | dBuV | |
| Output Return Loss | 45~1000MHz | 8 | dB |
| Optical Input Signal Connector Type | SC/APC | ||
| Output Signal Connector Type | F-Type | ||
| Output Impedance | 75Ω | ||
| Optical Input Return Loss | 45 | dB | |
| Operating Temperature | -25~65 | °C | |
| Dimension | 76x54x15.5 | mm | |
| Weight | BFRX-SC-F2 | 48 | g |
| BFRX-SC-F3 | 50 | g | |
| BFRX-SC-F4 | 52 | g | |
Technical Specification
Width
5.6mm
Depth
17mm
Height
8mm
Weight
0.1kg
