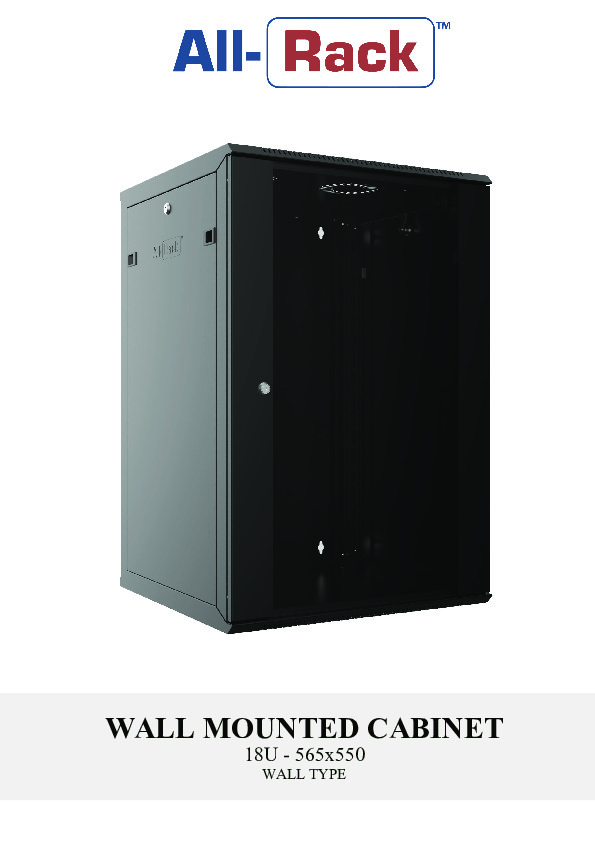

ALL-RACK Wall Cabinet 18U Black

(W565 x D550 x H843mm) *HEAVY* 27kg
*Special Order! NCNR - Check Lead Time*
*NB: ONLY Pallet Courier DIRECT Delivery*

SKU: CAB18WB550

  Product Documents

ALL-RACK Wall Cabinet 18U Black

(W565 x D550 x H843mm) *HEAVY* 27kg
*Special Order! NCNR - Check Lead Time*
*NB: ONLY Pallet Courier DIRECT Delivery*


Features:

  • Compatible with 19" rack mountable products
  • Added ventilation around the cabinet
  • Top & bottom cable entry
  • Rear plastic cable entry
  • Toughened glass front door
  • Plastic locking mechanism (latches on side panels)
  • Barrel locking mechanism (front door)
  • Earthing terminals
  • Integral cable management in mounting profiles
  • Numbered and adjustable mounting profiles
  • Grommets on base thus avoiding direct contact with an abrasive surface if cabinet is not wall mounted

Dimensions:
Size: 18U
Width: 565mm
Height: 843mm
Depth: 550mm

Loading Capacity:
40kg

Material:
Steel Construction
• Main body: 1mm
• Side panels: 1.2mm
• Front door: 1.2mm
• Vertical rails: 1.5mm
• Finish Surface: Powder Coating
• Colour Code: RAL9005

Side Panel Lock System
Removable and lockable side panel simplifies and secures your installation, comprising of Barrel Lock and sliding spring latch mechanism.

Plastic Cable Entry
The standard configuration of the CAB6WB550 has a plastic knock-out cable entry on the rear.

19’’ Device Mounting Rail
Internal numbered uprights with additional built in cable management. Using standard M6 cage nuts.

Front Door
Can be mounted on the left or right hand side using the simple spring latch fixing posts at the top. Durable Fixed grommet rings are used to keep the door on a smooth hinge on the bottom.
