Class A+ 3GHz screened, pure copper coaxial cable is expertly manufactured to convey high-quality Digital/Satellite HDTV besides HD-SDI CCTV signals.
Key Features
• Premium Quality: Made to the BS EN 50117-1:2002 standards, it adheres to the stringent CAI Benchmark CAI-007-C / 100 / 06-2016
• Class A+ Screening: Ensures shielding against interference from external sources like Mobile phones and Wi-Fi
• 4K TV and Ultra HD compatibility: Perfect for modern home entertainment systems
• 3GHz minimal screening: Guarantees superior signal transmission

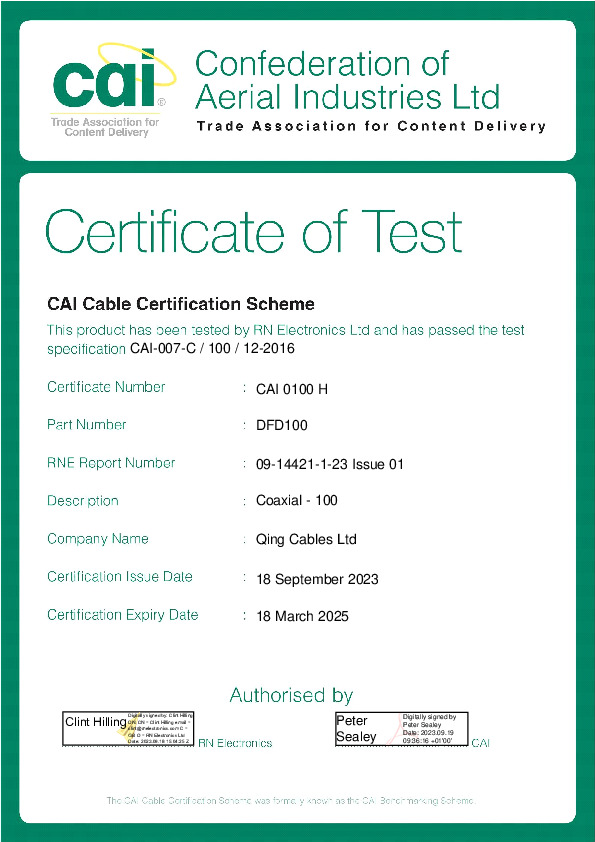

• CAI approval: Deemed high quality enough to achieve the CAI Benchmark status
Technical Specifications
• Conductor DC Resistance: 26 Ohms/km
• Outer Conductor Resistance: 15 Ohms/km
• Rated Temperature: 80°C
• Rated Voltage: 300V
• Insulation Resistance: More than 500 MΩ/km
• Nominal Capacitance: Less than 52.5pF/M (±10%)
• Velocity Ratio: 80%
• Nominal Impedance: 75Ω
• Attenuation (@20°C): 1.6 DB/100M at 5MHz
• Return Loss (@20°C): >23 DB at 5-30MHz
QING DFD100 Black LSF is a high-grade coaxial cable to fit advanced digital entertainment systems and HD-SDI CCTV signals. It ensures strong signal transportation while inhibiting external intrusions from other devices.
