125m WEBRO WF100 White LSF TWINSAT

Copper/Copper (CPR Class Eca)
*CAI Approved

SKU: 590026E-WHT-125

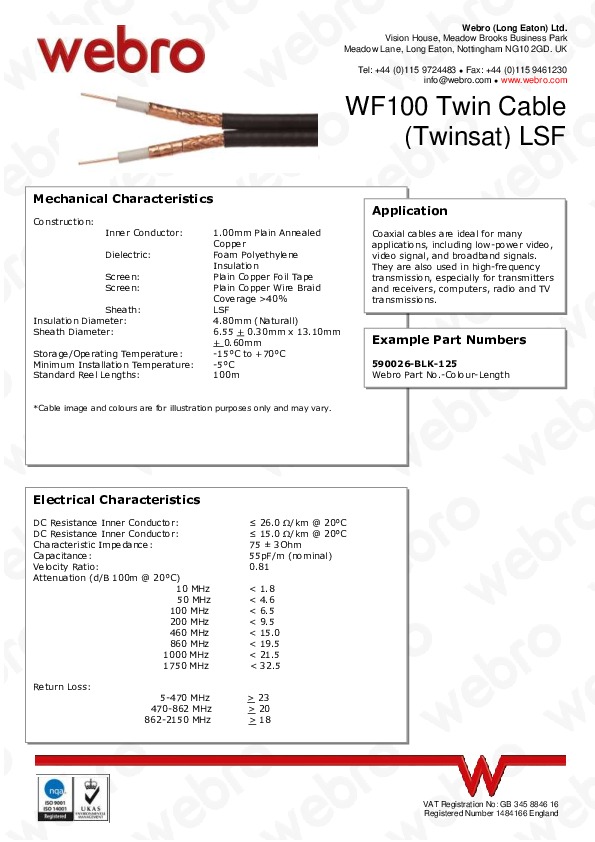

  Product Documents

125m WEBRO WF100 White LSF TWINSAT

Copper/Copper (CPR Class Eca)
*CAI Approved


Mechanical Specification:
Inner Conductor: 1.00mm CU
Dielectric: Foam PE
Diameter over Dielectric: 4.8mm
First Screen: CU Foil
Braid & Coverage CU: CU 40%
Sheathing Material: PVC
Diameter over sheath: 13.8mm
Weight Approx Kg: 95
Max Tensile Strength: 55N
Electrical Specification:
Characteristic Impedance: 75ohm
Capacitance pF/m: 55
Velocity Ratio: 0.81
Attenuation (dB 100m)
10MHz: 1.8
50MHz: 4.2
100MHz: 5.9
230MHz: 9.1
300MHz: 10.5
470MHz: 13.3
600MHz: 15.0
860MHz: 18.3
1000MHz: 19.9
1350MHz: 23.4
1750MHz: 27.0
2150MHz: 30.3
Return Loss (dB):
5-470MHz: > 23
470-862MHz: > 20
862-2150MHz: > 18
