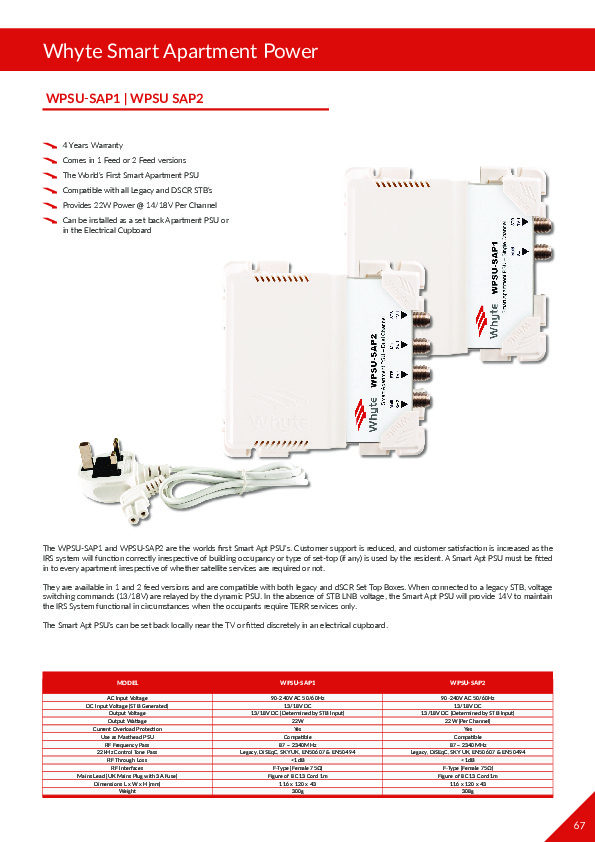

The WPSU-SAP1 and WPSU-SAP2 are the world’s first Smart Apartment PSU’s which are used to remotely power IRS systems where no landlords power is present. They are available in 1 and 2 feed versions and are compatible with both legacy and dSCR Set Top Boxes. When connected to a legacy STB, voltage switching commands (13/18V) are relayed by the dynamic PSU. In the absence of STB LNB voltage, the Smart Apartment PSU will provide 14V to maintain the IRS System functional in circumstances when the occupants require TERR services only.
The Smart Apartment PSU’s can be set back locally near the TV or fitted discretely in an electrical cupboard.
Main Features:
- 4 Years Warranty
- 22kHz tone and DiSEqC passing
- Provides 22W Power @ 14/18V DC
- Operates in ‘follow set top box mode’
- Can be used as a Masthead power supply
- Compatible all Legacy or dSCR Set Top Boxes
- Compatible with all Legacy and dSCR Multiswitches
- Ideal for use with the Whyte WSCR504RP remote power dSCR
Specifications:
| Channels: | Single Channel (Single feed) |
| AC Input Voltage: | 100 - 240V AC 50/60Hz |
| DC Input Voltage (STB Generated): | 13/18V DC |
| Output Voltage: | 14/18V DC (Determined by STB Input) |
| Output Wattage: | 22W |
| Current Overload Protection: | Yes (30W ±10%) |
| Use as Masthead PSU: | Compatible |
| RF Frequency Pass: | 87 - 2340MHz |
| 22kHz Control Tone Pass: | Legacy, DiSEqC, SKY UK, EN50607 & EN50494 |
| RF Through Loss: | <1dB |
| RF Interfaces: | F-Type (Female 75Ω) |
| Mains Lead (UK Mains Plug with 3A Fuse): | Figure of 8 C13 Cord 1m |
| Dimensions L x W x H (mm): | 116 x 120 x 43 |
| Weight: | 234g |
