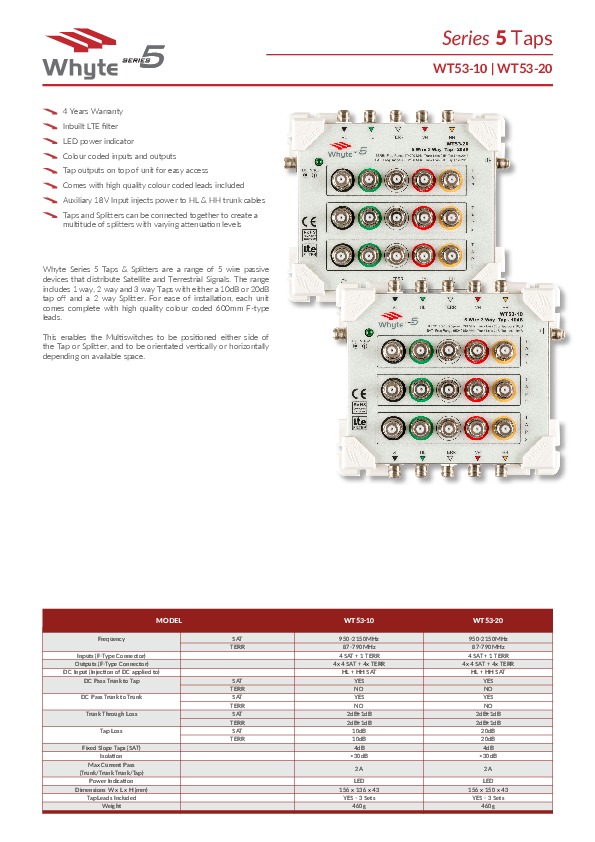

Whyte Series 5 Taps & Splitters are a range of 5 wire passive devices that distribute SAT and Terrestrial Signals.
For ease of installation, each Tap comes complete with a set of high quality colour coded 600mm F-type leads which enables the Multiswitches to be positioned either side of the Tap and to be orientated vertically or horizontally depending on available space.
Main features:
- 4 Years Warranty
- Inbuilt LTE filter
- LED power indicator
- Colour coded inputs and outputs
- Tap outputs on top of unit for easy access
- Comes with high quality colour coded leads included
- Auxiliary 18V Input injects power to HL & HH trunk cables
- Whyte Taps, Splitters and Multiswitches can be used to configure Integrated Reception Systems (IRS) to suit your application
Specifications:
Frequency: SAT: 950-2150MHz | TERR: 87-790MHz
Inputs (F-Type Connector): 4 SAT + 1 TERR
Outputs (F-Type Connector): 4× 4 SAT | 4× 1 TERR
DC Input (Injection of DC applied to): SAT Trunks HL + HH
DC Pass Trunk To Tap: SAT: All | TERR: No
DC Pass Trunk to Trunk: SAT: Yes | TERR: No
Trunk Through Loss: SAT: 2dB±1 | TERR: 2dB±1
Tap Loss: SAT: 20dB | TERR: 20dB
Fixed Slope Tap (SAT): 4dB
Isolation: >30dB
Max Current Pass (Trunk/Trunk Trunk/Tap): 2A
Power Indication: LED
Dimensions (mm): 156 x 136 x 43
Tap Leads: 3 Sets Included
Weight: 460g
