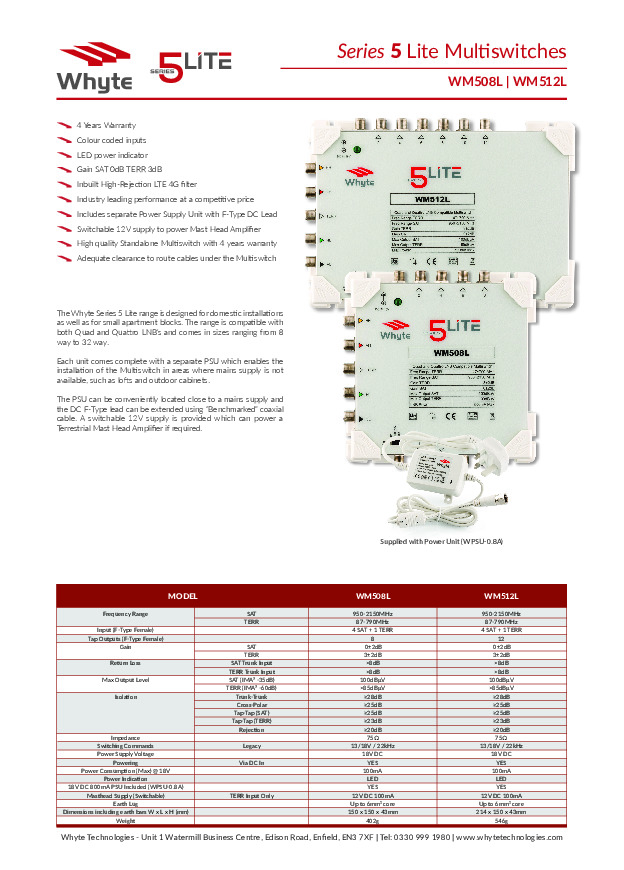

The Whyte Series 5 Lite 12-Way Standalone Multiswitch is designed for domestic installations as well as for small apartment blocks and, it is compatible with both QUAD and QUATTRO LNB’s.
Main Features:
- LED Power Indicator
- Colour Coded Inputs
- Gain SAT: 0dB / TERR: 3dB
- Inbuilt High-Rejection LTE 4G Filter
- Industry Leading Performance at a competitive price
- Switchable 12V supply to power Mast Head Amplifier
- Adequate Clearance to route cables under Multiswitch
- Includes Separate Power Supply Unit with F-Type DC Lead
- High quality Standalone Multiswitch with 4 years warranty
- Comes Complete with 0.8A 18V DC Power Supply WPSU-0.8A
Specifications:
| Frequency Range: | SAT 950-2150MHz | TERR 87-790MHz |
| 4G Filter: | YES |
| Input (F-Type Female): | 4 SAT + 1 TERR |
| Tap Outputs (F-Type Female): | 12 |
| Gain: | SAT 0±2dB | TERR 3±2dB |
| Return Loss Trunk Input: | SAT >8dB | TERR >8dB |
| Max Output Level: | SAT (IMA³ -35dB) 100dBμV TERR (IMA³ -60dB) >85dBμV |
| Isolation: | Trunk - Trunk >28dB Cross Polar: ≥25dB Tap-Tap SAT >25dB Tap-Tap TERR >23dB Rejection ≥20dB |
| Impedance: | 75 Ohms |
| Switching Commands: | Legacy 13/18V / 22kHz Tone |
| Power Supply Voltage: | 18V DC |
| Powering: | Via DC Input Only |
| Power Consumption (Max) @18V: | 100mA |
| Masthead Power Supply (Switchable): | TERR Input Only 12V DC 100mA |
| 18V DC 800mA PSU (WP-0.8A): | Included |
| Earth Lug: | Up to 6mm² Core |
| Dimensions (mm): | 214 x 150 x 43 |
| Weight: | 546g |
