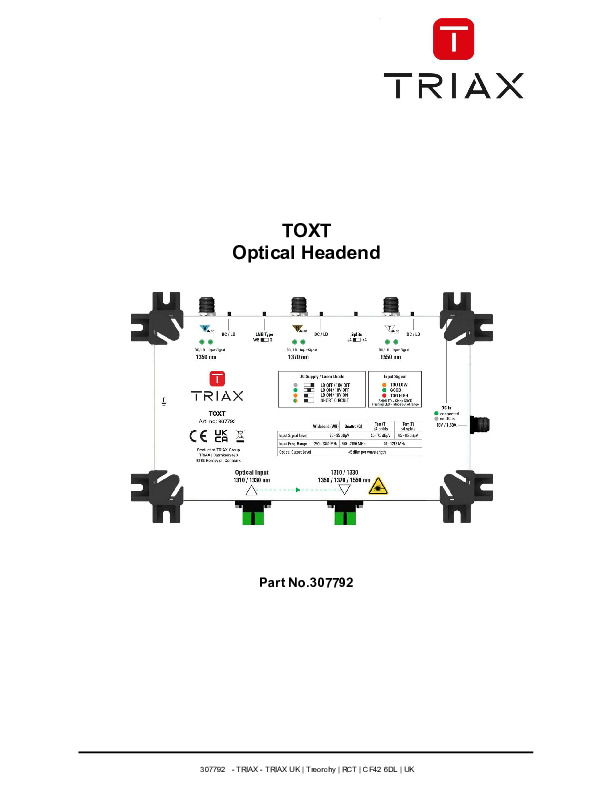

The TRIAX TOXT Optical Extra Headend converts Wideband/TERR signals to multiple optical wavelengths.
Thanks to built-in Automatic Gain Control (AGC) and Automatic Slope Control (ASC), the output signal quality is optimal for your optical distribution system (9 dBm output power).
The TOXT is suited for many types of optical systems: up to 64 splits, (32 Splits for FTTH) or can be easily be extended to many more!
• 2 Wideband and 1 TERR inputs
• Frequency range: SAT 290-2340 MHz (Wideband) / 950-2150 MHz (Quattro) | TERR 40-1218 MHz
• 1 Optical output wavelengths 1350 - 1370 - 1550 (1310 - 1330 from optical loopthrough)
RF Inputs (F-connector): 2 x Satellite (WB/Q) 1 x TERR
Input frequency SAT (MHz): Wideband 290-2340 | Quattro 950-2150
Input frequency TERR (MHz): 47-1218
Optical outputs (SC/APC): 1
Optical inputs (SC/APC): 1
Optical output wavelengths (nm): 1310 1330 (Bypass) 1350 - 1370 - 1550
Optical output power (dBm): +9 (per wavelength)
Minimal input level SAT (dBµV): 75 - 95
Minimal input level TERR (dBµV): 55 - 75 (TERR
65 - 85 (TERR >4 splits)
DC supply: 18V / 400mA
DC supply TERR: 12V / 200mA
Automatic Gain Control (dB): 15
Automatic Slope Control (dB): 10
Power consumption (W): 27
DC input: 18V / 2A (F-type)
Power Supply: Use an 18V / 2A Power Supply (Ref: 318166) Not included with product
Operating temperature range (°C): -10 to +50
Dimensions (mm): 221 x 141 x 50
Weight (kg): 0.8
