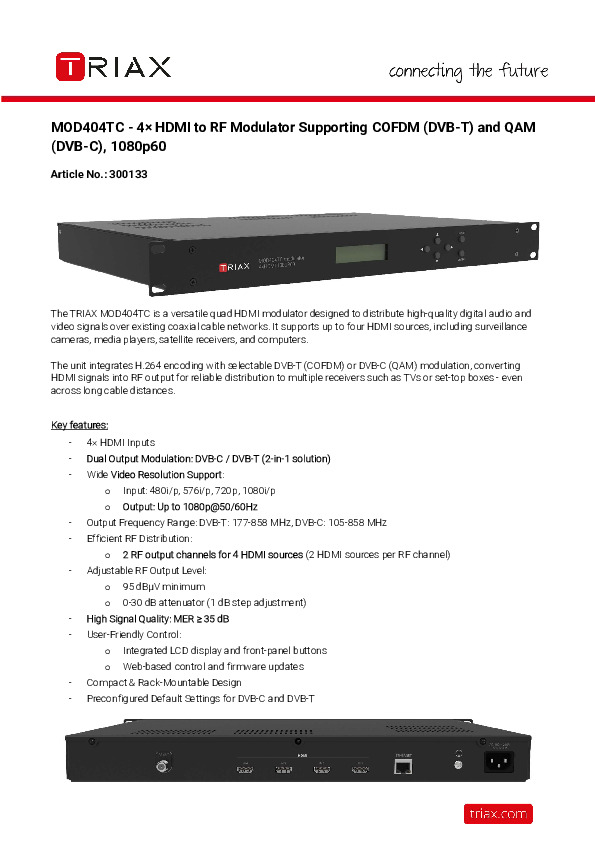

The TRIAX MOD404TC is a versatile quad HDMI modulator designed to distribute high-quality digital audio and video signals over existing coaxial cable networks. It supports up to four HDMI sources, including surveillance cameras, media players, satellite receivers, and computers.
The unit integrates H.264 encoding with selectable DVB-T (COFDM) or DVB-C (QAM) modulation, converting HDMI signals into RF output for reliable distribution to multiple receivers such as TVs or set-top boxes - even across long cable distances.
Key features:
- 4x HDMI Inputs
- Dual Output Modulation: DVB-C / DVB-T (2-in-1 solution)
- Wide Video Resolution Support: Input: 480i/p, 576i/p, 720p, 1080i/p, Output: Up to 1080p@50/60Hz
- Output Frequency Range: DVB-T: 177-858 MHz, DVB-C: 105-858 MHz
- Efficient RF Distribution: 2 RF output channels for 4 HDMI sources (2 HDMI sources per RF channel)
- Adjustable RF Output Level: 95 dBμV minimum, 0-30 dB attenuator (1 dB step adjustment)
- High Signal Quality: MER ≥ 35 dB
- User-Friendly Control: Integrated LCD display and front-panel buttons, Web-based control and firmware updates
- Compact & Rack Mountable Design
- Preconfigured Default Settings for DVB-C and DVB-T
