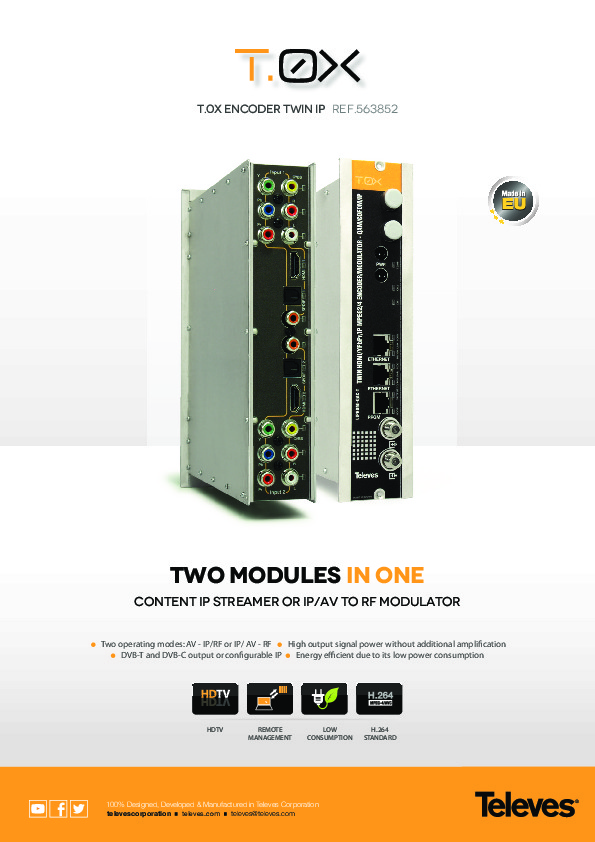

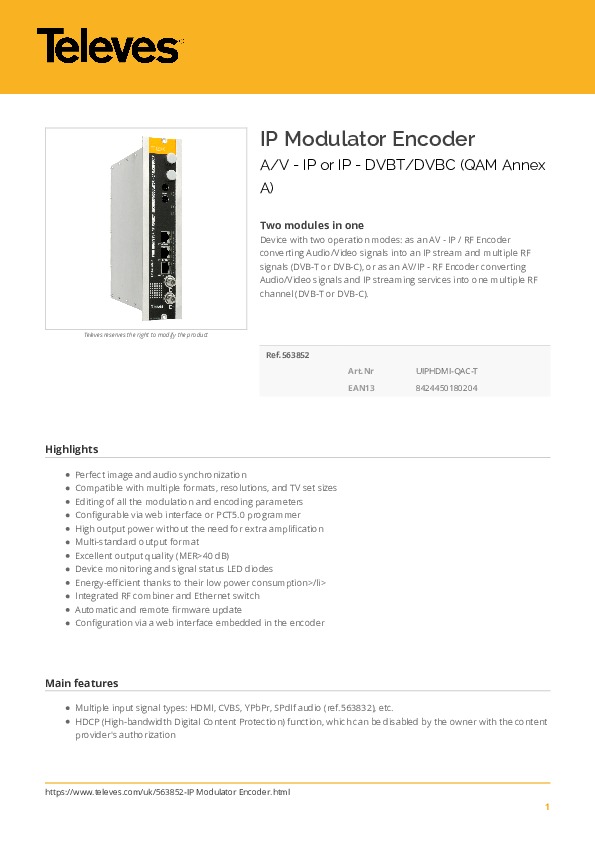

IP Modulator Encoder
A/V - IP or IP - DVBT/DVBC (QAM Annex A)
Two modules in one
Device with two operation modes: as an AV - IP / RF Encoder converting Audio/Video signals into an IP stream and multiple RF signals (DVB-T or DVB-C), or as an AV/IP - RF Encoder converting Audio/Video signals and IP streaming services into one multiple RF channel (DVB-T or DVB-C).
Highlights
- Perfect image and audio synchronization
- Compatible with multiple formats, resolutions, and TV set sizes
- Editing of all the modulation and encoding parameters
- Configurable via web interface or PCT5.0 programmer
- High output power without the need for extra amplification
- Multi-standard output format
- Excellent output quality (MER>40 dB)
- Device monitoring and signal status LED diodes
- Energy-efficient thanks to their low power consumption>/li>
- Integrated RF combiner and Ethernet switch
- Automatic and remote firmware update
- Configuration via a web interface embedded in the encoder
Main features
- Multiple input signal types: HDMI, CVBS, YPbPr, SPdIf audio (ref.563832), etc.
- HDCP (High-bandwidth Digital Content Protection) function, which can be disabled by the owner with the content provider's authorization
