TELEVES T.0X Fibre Transmitter

1310nm Po 6dBm w/o Return Path
Frame Mounted SC/APC - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: 233306

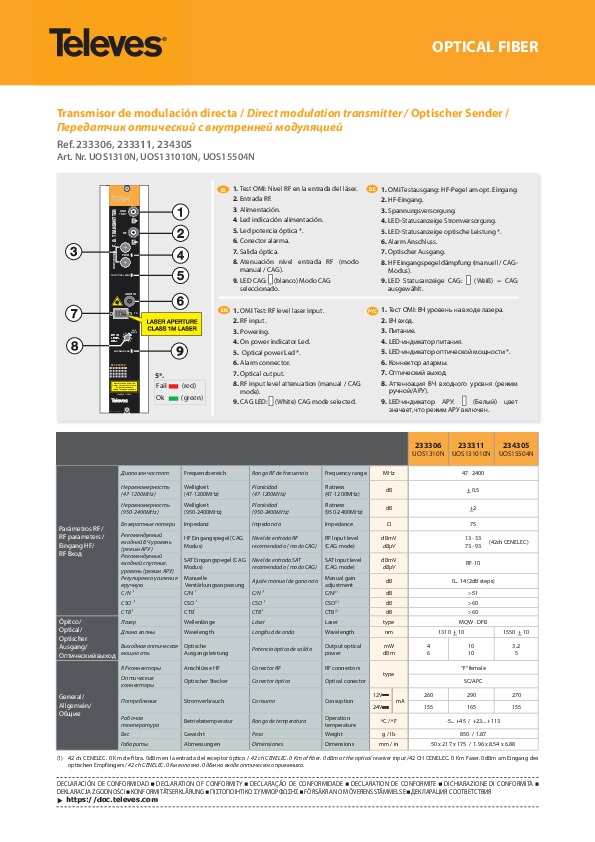

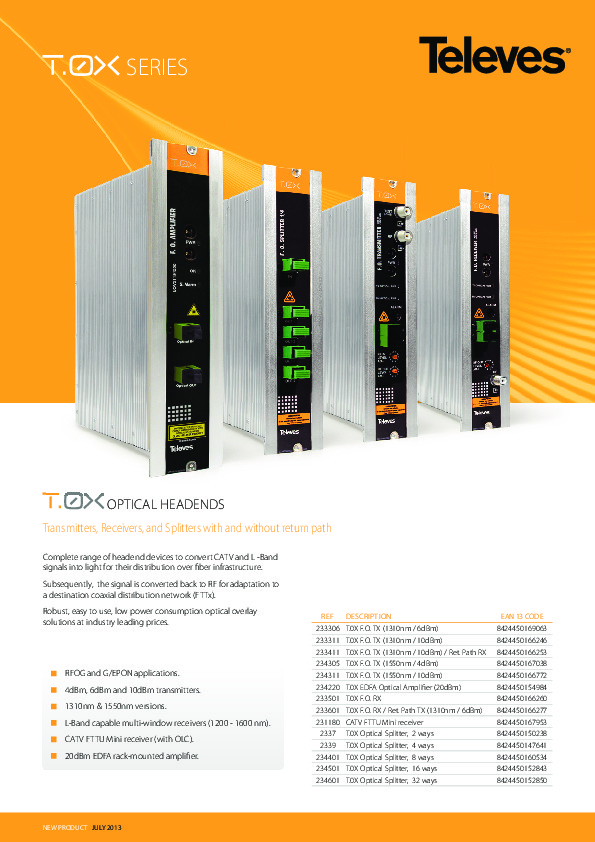

  Product Documents

TELEVES T.0X Fibre Transmitter

1310nm Po 6dBm w/o Return Path
Frame Mounted SC/APC - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*


SMATV optical transmitter (without Return Path)
1310 nm, Po 6 dBm

Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 6 dBm.

Perfect for RFoG / RF Overlay solutions.

HIGLIGHTS

  • SMATV-compatible: up to 2400 MHz input bandwidth
  • RF input level control: optimization of the optical conversion quality parameters
  • Optical power drop alarm

MAIN FEATURES

  • Very low equivalent noise conversion
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF

RF PARAMETERS
Frequency range (MHz): 47 - 2400
Flatness: 47-1200 MHz ±0.5 dB / 950-2400 MHz ±2 dB
Impedance (Ohm): 75
Input level: RF 73 - 93 dBμV / SAT 63 - 83 dBμV
Manual gain adjustment (dB): 0 ... 14 (2dB steps)
C/N (dB): >51
CSO (dB): >60
CTB (dB): >60

OPTICAL
Laser (type): MQW - DFB
Wavelength (nm): 1310 ± 10
Output optical power (dBm): 6

GENERAL
RF connectors (type): “F” female
Optical connector: SC/APC
Consumption: 12 Vdc 260 mA / 24 Vdc 155 mA
Operating temperature: -5 ... +45 ºC
