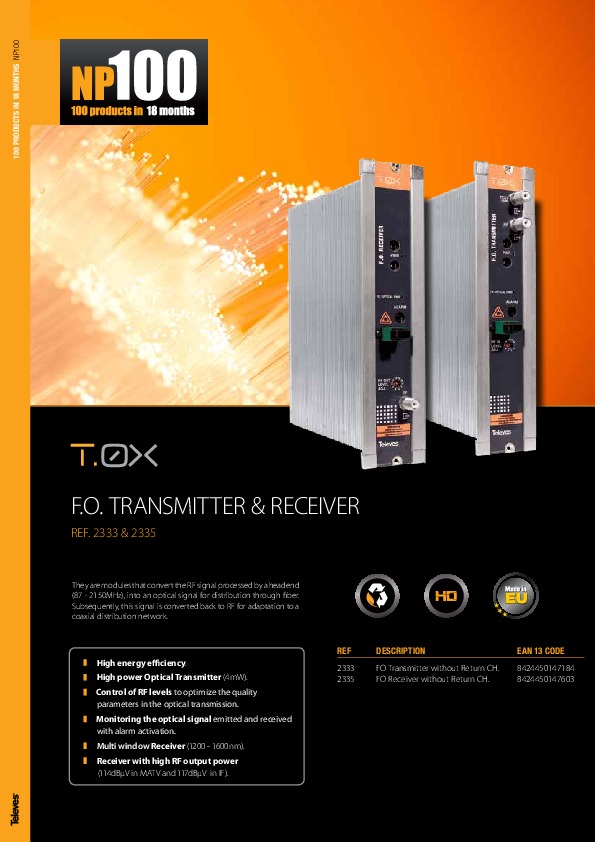

SMATV optical receiver without Return Path
1200...1600 nm
They receive an optical signal in the 1200 nm-1600 nm range to restore the original RF signal transformed by a transmitter.
The RF band is compatible with SMATV (87 MHz - 2400 MHz).
Perfect for RFoG / RF Overlay solutions.
HIGHLIGHTS
- Wide reception optical range
- Output level above 90 dBµV
- Optical power LED indicators
- The output band includes SAT, up to 2400 MHz
- Optical power drop alarm
MAIN FEATURES
- Perfect for RF overlay solutions
- Very low equivalent noise conversion
- Adjustable attenuator
- Easy to install and use
- High energy efficiency
- SC/APC optical connectors, and F-type connectors for RF
RF INPUT/OUTPUT
Frequency range: Forward channel (MHz): 87 - 2400 / Return channel: ----
Maximum Output Level for CSO and CTB >= 60dB: 87-862 MHz: 93 dBμV / 950-2400 MHz: 90 dBμV
Output level regulation margin (in 2 dB steps) (dB): 0 - 18
Maximum input level return path (dBμV): ----
Equivalent input noise of the return channel, measured at 30 MHz and the transmitter output connected directly to the receiver (dBm/Hz): -152,5
Flatness (dB): ± 1,5
Return losses (dB): >= 11
Impedance (ohm): 75
OPTICAL INOUT (FORWARD CHANNEL)
Optical device (type): InGaAs Pin Photodiode
Wavelength (nm): 1200 -1600
Detection bandwidth (MHz): 1 - 3000
Maximum Optical power received (mW/dBm): 4 / 6
OPTICAL OUTPUT (RETURN CHANNEL)
Laser (type): ----
Wavelength (nm): ----
Maximum output power (mW/dBm): ----
GENERAL
Powering/Consumption: 12 Vdc (mA): 300 / 24 Vdc (Ma): 155
RF connectors (type): F hembra
Optical connectors: SC/APC
Operating temperature: -5 ··· +45 ºC
