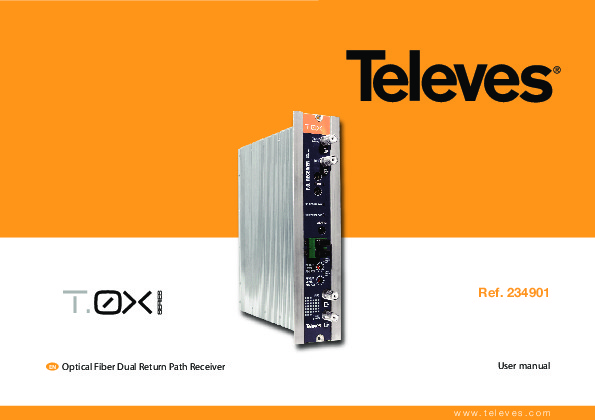

Return Path optical receiver with AGC
1270...1650 nm
Receives two fibres with two Return Paths in the 1270 nm-1650 nm range, and restores the original signals in RF (5 MHz-300 MHz).
Equipped with automatic gain control (AGC) for a constant RF level, irrespective of the optical input level.
HIGHLIGHTS
- Two independent Return Path receivers per module
- AGC with operation LED indicator
- Constant output level, irrespective of the optical input level
- Wide range of input power values
MAIN FEATURES
- Perfect solution for high-density networks in terms of data and video traffic
- Useful in any type of network thanks to its wide dynamic range (-16 dBm to 1 dBm).
- Equipped with very low noise stages that minimize distortion effects
- SC/APC optical connectors, and F-type connectors for RF
RF PARAMETERS (each receiver)
RF frequency range (MHz): 5...300
RF output level (AGC mode) (dBμV / dBmV): 74 ±2 / 14 ±2
RF manual gain adjust (dB): 0 ... 14 (steps 2 dB)
Output test point (dB): -30 ±0.5
Flatness (dB): ±1
Return losses (dB): >=15
Impedance (Ohm): 75
RF connector type (tipo): F
NPR (dB): >=40
OPTICAL (each receiver)
Wavelength (nm): 1270 ... 1650
Optical input power (dBm): -16 ... +1
Optical return losses (dB): 50
Connector type (tipo): SC/APC
Absolute maximum input power (dBm): 5
GENERAL
Supply voltage (Vdc): 12 ... 24
Max power consumption (W): 5 (24Vdc)
Operating temperature: -5 ... +45 ºC / +23 ... +113 ºF
