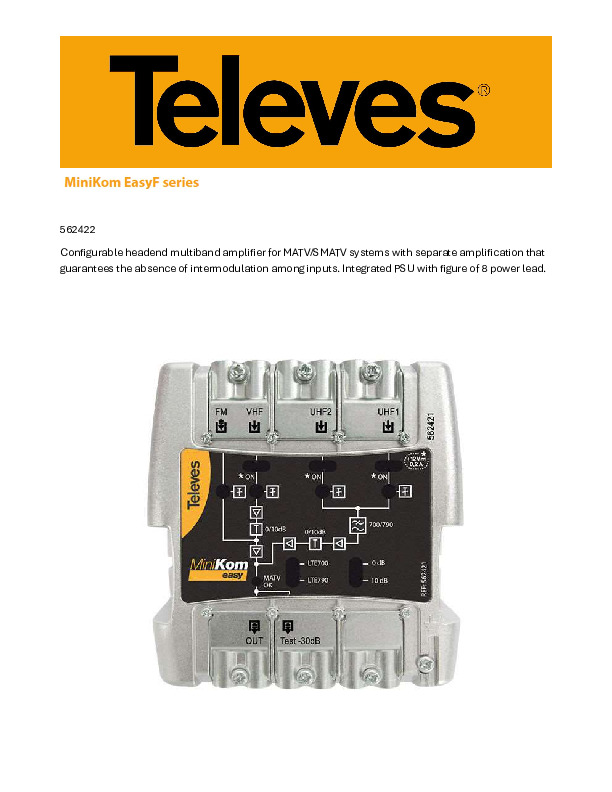

Configurable headend multiband amplifier for MATV/SMATV systems with separate amplification that guarantees the absence of intermodulation among inputs. Integrated PSU with figure of 8 power lead.
Equipped with 4 inputs: FM-VHF-UHF-UHF; the VHF and UHF inputs have both selectable gain margins, whereas the FM input has a single amplifying stage.
Equipped with a switch for LTE790 or LTE700 filtering, and an output LED signal indicator for immediate network failure detection.
Highlights
- Very compact size (103 mm x 103 mm x 50 mm)
- Switch for LTE filtering (790/700), to remove mobile phone interference
- LED indicators to display the presence of both output signal and power supply
- Switched configurable gain (high/low), and high output level
- Two amplifying stages for TV bands
- Switch-mode power supply ensuring low power consumption
- EasyF connection system
- High-screening Zamak chassis
Main features
- Test output (-30 dB)
- Intuitive front cover, including adjustments and block diagram
- ON/OFF DC pass switch on VHF and UHF inputs for pre-amplifier or BOSS system powering
- Can be wall-mounted using screws
