With the analogue A/V display, your H30FLEX meter will be able to digitise analogue video signals. It is specially designed for the visualisation and monitoring of analogue video cameras, supporting both NTSC and PAL formats.

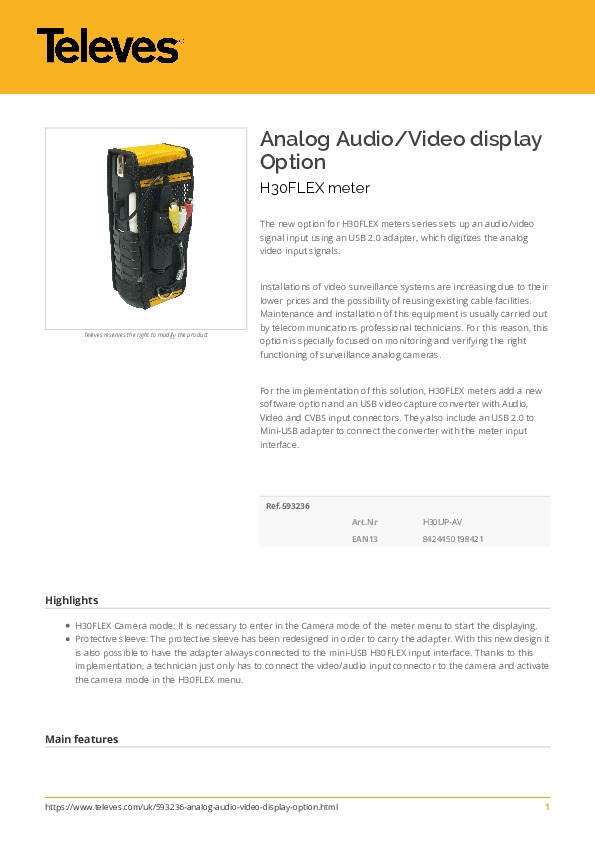

ANALOGUE AUDIO/VIDEO DISPLAY OPTION - the new option for H30FLEX meters series sets up an audio/video signal input using an USB 2.0 adapter, which digitises the analogue video input signals.
Installations of video surveillance systems are increasing due to their lower prices and the possibility of reusing existing cable facilities. Maintenance and installation of this equipment is usually carried out by telecommunications professional technicians. For this reason, this option is specially focused on monitoring and verifying the right functioning of surveillance analogue cameras.
For the implementation of this solution, H30FLEX meters add a new software option and an USB video capture converter with Audio, Video and CVBS input connectors. They also include an USB 2.0 to Mini-USB adapter to connect the converter with the meter input interface.
Highlights
- H30FLEX Camera mode: It is necessary to enter in the Camera mode of the meter menu to start the displaying
- Protective sleeve: The protective sleeve has been redesigned in order to carry the adapter. With this new design it is also possible to have the adapter always connected to the mini-USB H30FLEX input interface. Thanks to this implementation, a technician just only has to connect the video/audio input connector to the camera and activate the camera mode in the H30FLEX menu
Main features
- Supported input interfaces are:
- A/V connector 1: RCA compuesto (yellow for composite video, and white and red for stereo audio)
- A/V connector 2: S-Video
- The next video formats can all be displayed by the H30FLEX:
- NTSC: 720x480 @ 30fps
- PAL: 720x576 @ 25fps
