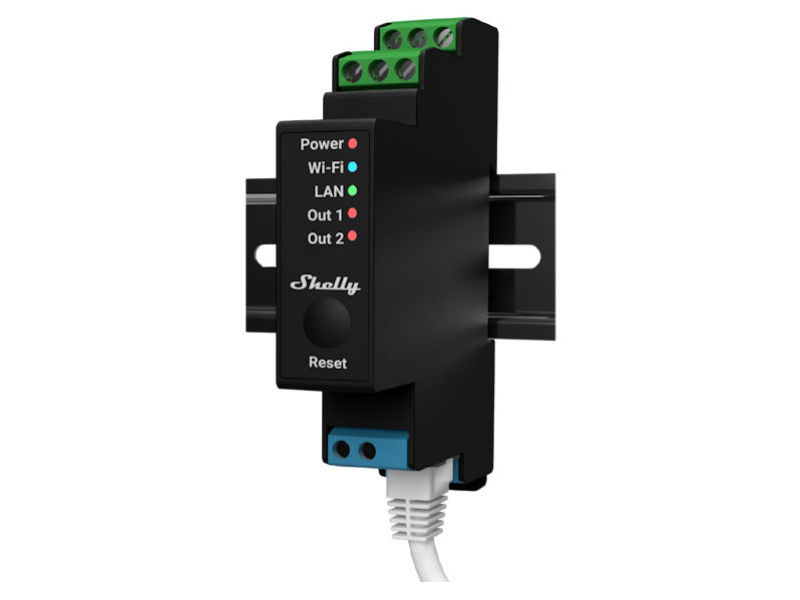

Professional 2- channel relay with Wi-Fi, LAN, and Bluetooth connection. Suitable for office and business facility automation with remote control and precise power management. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms. Control lights, roller shutters, garage doors, gates, awnings, shades, pool covers, bi-directional AC motors.
Main features:
- LAN, Wi-Fi, and Bluetooth connection
- 2 output, 16A each. Total device maximum of 25A
- Power metering on each channel and free storage data
- Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
- DIN rail mountable
- Power supply AC: 110-230V ±10%, 50/60Hz
- Maximum load: 2 outputs, 16A each. Total device maximum of 25A
- Power supply DC: 12V DC ±10%
- Channels: 2 Channel
- Roller shutter mode: With position control (roller shutters, gates, curtains, garage doors, awnings, bi-directional AC motors)
- Device temperature protection
- Overload protection
- Power measurement
- HTTP/HTTPS webhooks
- Custom scripts (mJs):
- Operational temperature: -20°C to + 40 °C
- Device power consumption: < 4 W
- Intelligent On/Off
- Local and remote control
- Sunrise/Sunset
- Weekly Schedule
- UL Listed option
- Wireless
- Wi-Fi Protocol: 802.11 b/g/n
- Wi-Fi Radio frequency: 2412 - 2484 MHz
- Wi-Fi Radio signal power: 1mW
- Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- Bluetooth
- Ethernet
- Size: 18,5mm x 89,5mm x 68,5mm
