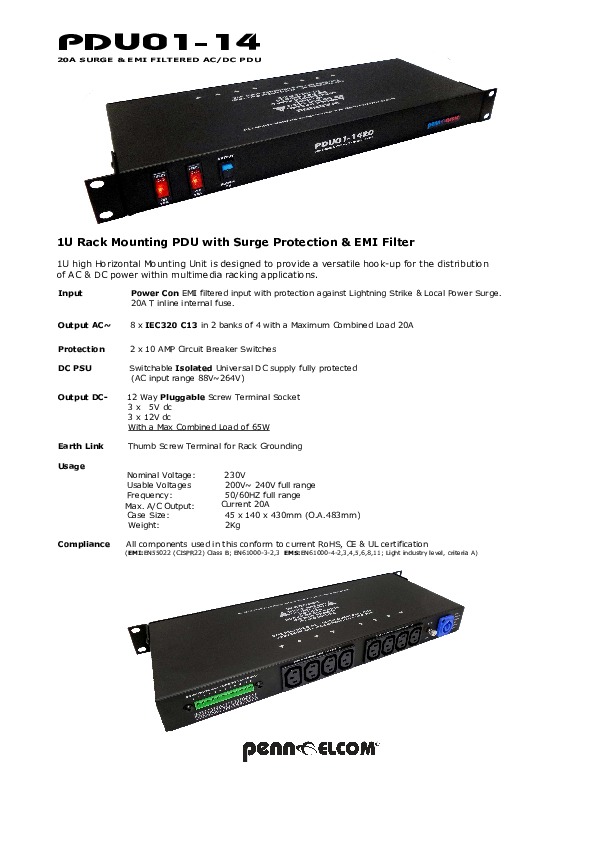

Designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications.
All components used in this unit conform to current RoHS, CE & UL certification.
Technical Specifications:
- Case Size: 45mm x 140mm x 430mm / 1.77" x 5.51" x 16.93"
- DC PSU: Switchable Isolated DC supply
- Earth Link: M4 Screw Terminal for rack grounding.
- Frequency: 50/60Hz
- Input: Neutrik Power Con with Internal 20A line Fuse, 20A EMI filter & GDC/MOV Lightning Strike/Power Surge Protection
- Max. A/C Output: Current 20A
- Nominal voltage: 230V
- Output AC: 8 x IEC320 C13
- Output DC: 12 Way pluggable screw terminal socket. 3 x 5V dc max load 2100mA. 3 x 12V dc max load 1200mA.
- Protection: 2 x 10 Amp Circuit Breakers
- Usable Voltages: 200V - 240V
