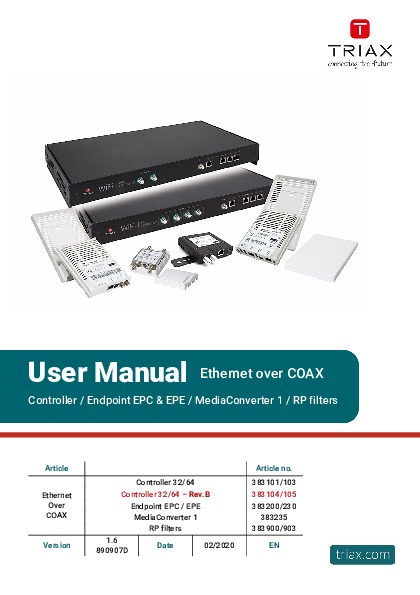

  Product Documents

TRIAX EoC Return Path Filter 200/300 MHz

Ethernet Over Coax
*Special Order NCNR - Price on Request*


The return path filter is used to bypass amplifiers in a normal coax based TV network on the data frequency of EoC. This allows the data to have a return path and the TV signal to be amplified.

MAIN FEATURES:

•Return path 1...200 MHz – no amplification
•To amplifier 300...862 MHz

CHARACTERISTICS
Isolation TV IN Amp. - TV OUT Amp: > 49.0 (250...862MHz) dB

OPERATIONAL
Temperature - operating : -10...40 °C
Temperature - storage: -20 ..70 °C
Humidity - operating: 20...80 %
Humidity - storage : 10...90 %

ELECTRICAL
Impedance: 75 Ω

FREQUENCY
Frequency Range G.hn: 1...200 MHz
Frequency Range TV: 300...862 MHz

LOSS
Through Loss TV/EoC IN - TV/EoC OUT: < 3,0(2...200MHz) dB
Through Loss TV EoC IN - TV OUT Amp: < 1,5(250...862MHz) dB
Through Loss TV EoC IN Amp. - TV/EoC OUT: < 1,5(250...862MHz) dB

RETURN LOSS
Return Loss: > 10,0 dB
