GLOBAL Fibre IRS 12 Switchblade dCSS

4 dCSS SkyQ™ + 8 Legacy Outputs
Black Case c/w PSU - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: D000406

  Product Documents

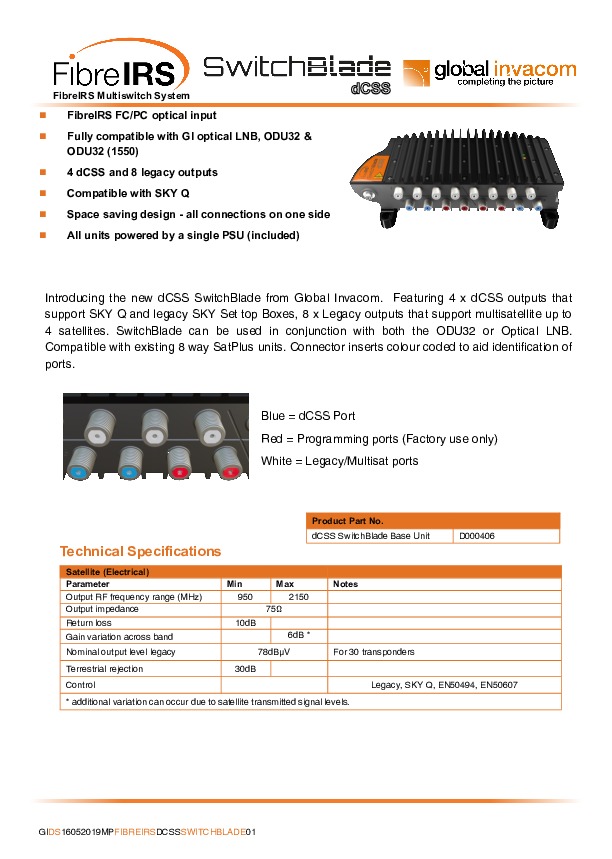

GLOBAL Fibre IRS 12 Switchblade dCSS

4 dCSS SkyQ™ + 8 Legacy Outputs
Black Case c/w PSU - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*


  • FibreIRS FC/PC optical input
  • Fully compatible with GI optical LNB, ODU32 & ODU32 (1550)
  • 4 dCSS and 8 legacy outputs
  • Compatible with SKY Q
  • Space saving design - all connections on one side
  • All units powered by a single PSU (included)

The dCSS FibreIRS SwitchBlade from Global Invacom features x4 dCSS outputs that support SKY Q and legacy SKY Set top Boxes, x8 Legacy outputs that support multisatellite up to 4 satellites.

SwitchBlade can be used in conjunction with both the ODU32 or Optical LNB. Compatible with existing 8 way SatPlus units. Connector inserts colour coded to aid identification of ports.

Blue = dCSS Port
Red = Programming ports (factory use only)
White = Legacy/Multisat ports

TECHNICAL SPECIFICATIONS:

SATELLITE (Electrical)

  • Output RF frequency range (MHz): 950 (min) 2150 (max)
  • Output impedance: 75Ω
  • Return loss: 10dB (min)
  • Gain variation across band: 6dB (max)*
  • Nominal output level legacy: 78dBµV - For 30 transponders
  • Terrestrial rejection: 30dB (min)
  • Control: Legacy, SKY Q, EN50494, EN50607
  • additional variation can occur due to satellite transmitted signal levels.

DTT, DAB & FM (Electrical)

  • RF frequency range: DTT: 470-790MHz / DAB: 174-240MHz / FM: 88-108MHz
  • Nominal impedance: 75Ω
  • Return loss: 10dB (min)
  • Nominal DTT output: 70dBµV - For 8 multiplexes
  • Gain variation across band: 3dB (max)
  • 950-2150MHz rejection: 35dB (min)

FM. DAB, DTT & SATELLITE (Optical)

  • Optical wavelength: 1100nm to 1650nm
  • Optical input power: -14dBm (min) -3dBm (max) Subject to optical budget limitation of system deployed

DC SPECIFICATION

  • Input voltage: 12V
  • Current consumption dCSS Base: 1.9A Max
  • Current from receiver: <25mA Per port
  • DiSEqC: 1.0

CONNECTORS

  • Input: FC/PC
  • Output: F type (female)
  • Power supply: 2.1mm Jack

ENVIRONMENTAL SPECIFICATION

  • Operating temperature: -20°C to +40°C
  • Storage temperature: -40°C to +70°C
