(5) JOHANSSON Satellite Headend ETH

4 In (Wideband, Quad, Quattro) 1 Out +Test
(Carton of Five) - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: 9780 ETH

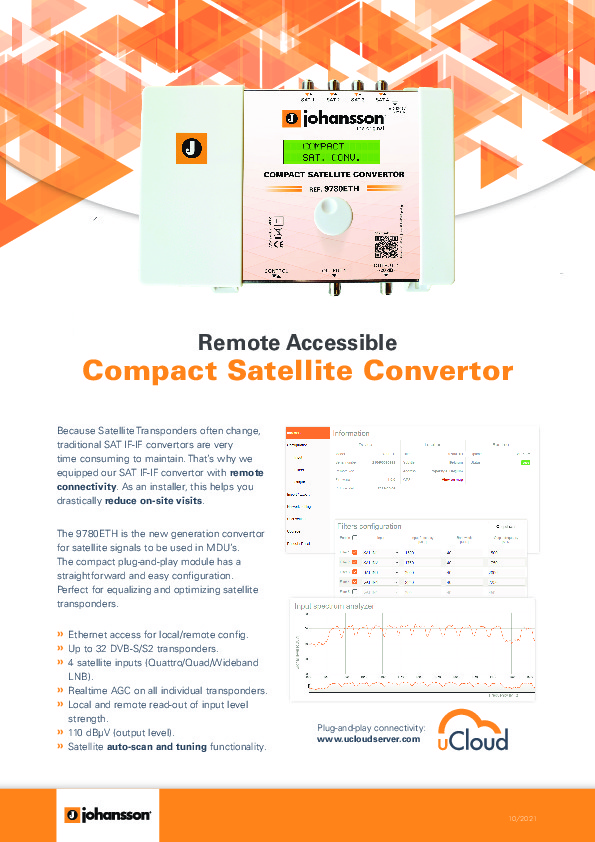

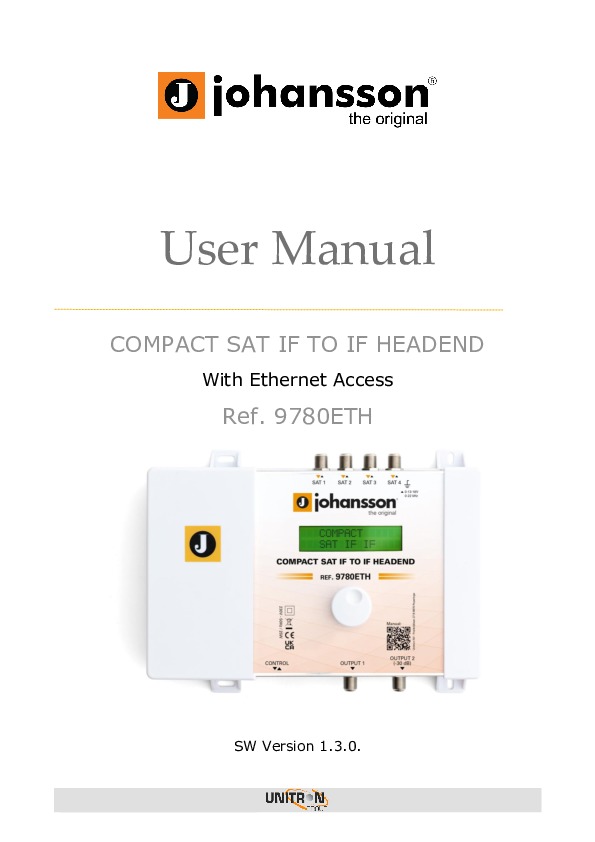

  Product Documents

(5) JOHANSSON Satellite Headend ETH

4 In (Wideband, Quad, Quattro) 1 Out +Test
(Carton of Five) - 2 Year Warranty
*Special Order! NCNR - Check Lead Time*


The 9780ETH is the new generation convertor for satellite signals to be used in MDU’s. The compact plug-and-play module has a straightforward and easy configuration.

  • Programmable satellite IF convertor
  • Up to 32 DVB-S/S2 transponders
  • 4 satellite inputs (Quattro/Quad/Wideband LNB)
  • Realtime AGC on all individual transponders
  • Read-out of input level strength: no need for field strength meter
  • 112 dBμV transponder output level
  • Remote accessible via www.ucloudserver.com

The state-of-the-art satellite convertor has no equivalent on the market due to its revolutionary technology:

  • The most cost-efficient satellite convertor solution on the market
  • Very easy and fast installation, without the need for a field strength meter
  • Extremely sharp filters
  • Perfect headend for your fibre installation to equalise and optimise the signals
  • Excellent quality of the output signal, the 9780 optimises the incoming satellite signal to assure supreme video quality on the end-users' TV-screens
  • Made in Europe, for worldwide application
  • 4 Satellite inputs
  • 0-13-18V
  • 0-22kHz

Inputs: 4SAT (Wideband/Quattro/Quad)
Outputs: 1 main (SAT) + 1 test port (-30dB)
SAT Input Frequency range (MHz): 290 - 2340
SAT Output Frequency range (MHz): 290 - 2340
SAT Input level (dBµV): 40 - 95
SAT output power (per transponder) (dBµV): 110
SAT output power (35dB/IM3) (dBµV): 132
SAT output level flatness (dB): <1
SAT output level adjustment (dB): >40
Slope adjustment (dB): 15
SAT Gain (dB): >40
Number of transponders: 32
Conversion: Yes (all transponders)
Transponder Bandwidth (MHz): 1 - 77 (per 1 MHz steps)
Selectivity (dB): 35 (@ 1MHz)
Return Loss (dB): 10
Auto tuning: Yes (incoming transponders are copied from 1 input to output)
ESD protection: All inputs
DC@ SAT input: 13V/18V & 0/22kHz selectable by SW
DC Load current @ SAT input (mA): 500
Ethernet Port: Yes (for web interface / remote access)
Operating temperature (°C): -5 to +50
Power Supply (V): 100 - 240
Power Consumption (W): 25
Dimensions (mm): 217 x 165 x 59
Weight (kg): 0.8
