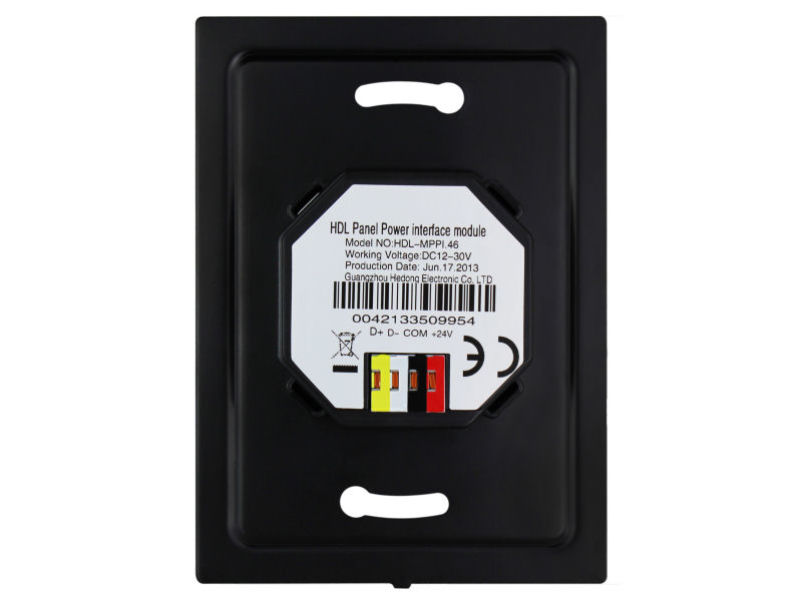

Required for the 115mm Enviro full colour touchscreen Panel. The HDL-MPPI.46 is a new generation of power interface, with a backing plate sized 86mm x115mm. The panel can be mounted on any wall, and its colour coded plugs dramatically simplify the installation process.
Redesigned interface:
The HDL-MPPI.46 is a new 4th generation US standard power interface, it is able to supply DC power and communication signals to Buspro panels and sensors. The interface is specifically designed for the US market as it has a backing plate matched to standard US switch plates. This allows simple installation, with minimal modification to the exiting mount or wall.
Slip gap design:
The slip gap design allows a user to quickly and easily separate the panel from the power interface. This minimizes installation time, and makes user servicing a possibility as no specialist tools or equipment are required.
Simple to install:
The four colour coded plugs make the connection to the Buspro system practically fool proof, by simply connecting the colour coded wire to its matching plug the installation is complete. This simple commissioning allows a user to install the MPPI.46 themselves, and troubleshoot any problems that may arise.
Functions:
- This docking base is the universal base for different switches
- It has the HDL Buspro interface. It must work in conjunction with panel or sensor
Electric Parameters:
- BUS Power Supply: DC24V
- Communication interface: RS485
Approved:
- CE
- RoHS
Production Information:
- Dimensions: 86x116.5x26.5(mm)
- Weight: 121.5(g)
- Housing material: Steel, ABS
- Installation: US Wall Box
- Protection: IP20
