HDL RS232/RS485 Gateway Module

*Special Order! NCNR - Check Lead Time*

SKU: HDL-MRS232U.431

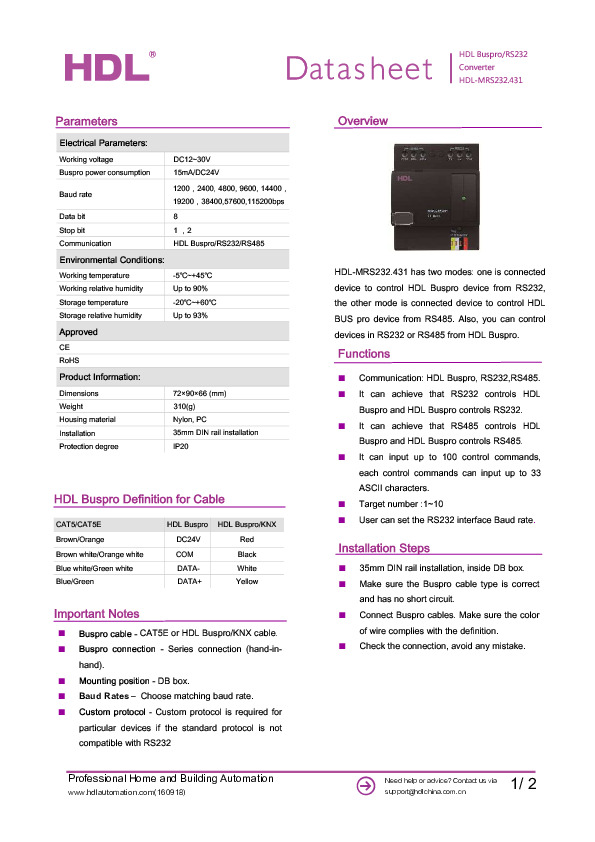

  Product Documents

HDL RS232/RS485 Gateway Module

*Special Order! NCNR - Check Lead Time*


RS232/RS485 Gateway is the supporting product of the Buspro intelligent system. Its external RS485/RS232 interface adopts anti-interference technology of electrical isolation. This device enables the two-way communication between RS485/RS232 interface devices and Buspro system devices.

  • Enabling the mutual control between RS485/RS232 interface devices and Buspro system devices
  • RS485/RS232 port ASCII or hexadecimal data ->Buspro protocol
  • Buspro protocol-> RS485/RS232 port ASCII or hexadecimal data
  • Input command number up to 99, ASCII code number contained in each command up to 33
  • RS485/RS232 Baud rate: 1200, 2400, 4800, 9600, 14400,19200, 38400, 57600, 115200bps. Users can set the baud rate of standard version of RS232/RS485 Gateway
  • Online upgrade

Basic Parameters
Working voltage 15~30V DC
Working current 15mA/24V DC

Communication Parameters
Baud rate 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200bps
Data bit 8
Stop bit 1, 2
Communication HDL Buspro/RS232/RS485

External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications
Dimensions 72mm×90mm×64mm
Net weight 310g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
