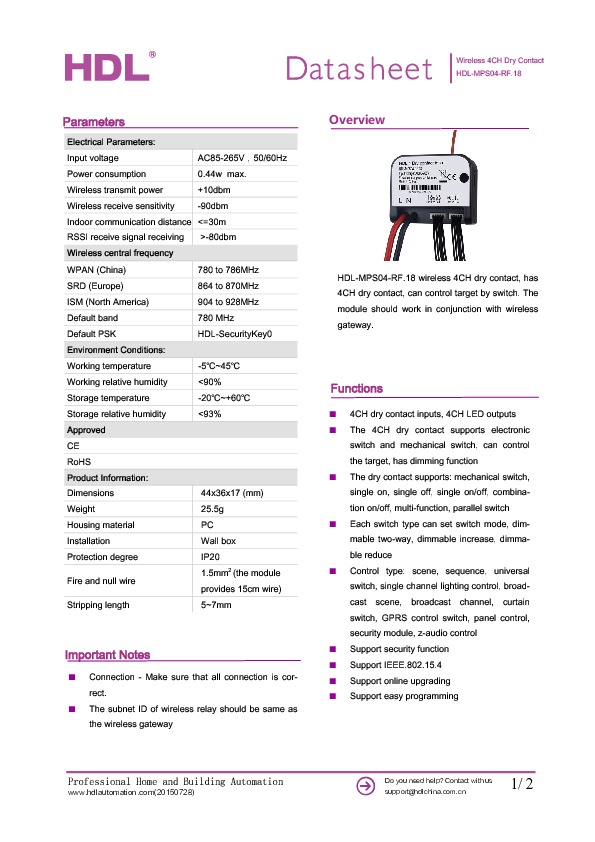

The HDL-MPS04-RF.18 wireless 4CH dry contact, has 4CH dry contact, can control target by switch. The module should work in conjunction with wireless gateway.
Functions:
- 4CH dry contact inputs, 4CH LED outputs
- The 4CH dry contact supports electronic switch and mechanical switch, can control the target, has dimming function
- The dry contact supports: mechanical switch, single on, single off, single on/off, combination on/off, multi-function, parallel switch
- Each switch type can set switch mode, dimmable two-way, dimmable increase, dimmable reduce
- Control type: scene, sequence, universal switch, single channel lighting control, broadcast scene, broadcast channel, curtain switch, GPRS control switch, panel control,security module, z-audio control
- Support security function
- Support IEEE.802.15.4
- Support online upgrading
- Support easy programming
Electrical Parameters:
- Input voltage: AC85-265V, 50/60Hz
- Power consumption: 0.44W max.
- Wireless transmitting frequency: +10dbm
- Wireless receiving sensitivity: -90dbm
- Indoor communication distance: ?30m
- RSSI: >-80dbm
Wireless Central Frequency:
- (China) WPAN: 780MHz to 786MHz
- (Europe) SRD: 864MHz to 870MHz
- (North America): 904MHz to 928 MHz
- Default band: 780MHz
- Default PSK: HDL-SecurityKey0
Approved:
- CE
- RoHS
Product Information:
- Dimensions: 44x36x17(mm)
- Weight: 25.5g
- Housing material: PC
- Installation: wall box
- Protection: IP20
- Fire and null wire: 1.5mm2 (the module provides 15cm wire)
- Stripping length: 5~7mm
